F59D4G81KA 4-Gbit 1.8V NAND Flash Memory

F59D4G81KA Description

ESMT Flash .
The device has 4352-byte static registers which allow program and read data to be transferred between the register and the memory cell array in 4352-b.

F59D4G81KA Features

* Voltage Supply ­ VCC: 1.8V (1.7 V ~ 1.95V)
* Organization ­ Page Size: (4K + 256) bytes ­ Data Register: (4K + 256) bytes ­ Block Size: 64Pages = (256K + 16K) bytes ­ Number of Planes: 1 ­ Number of Block per Die (LUN)= 2048
* Automatic Program and Erase ­ Page Program: (4K + 256) byte

F59D4G81KA Applications

* such as solid state file storage, voice recording, image file memory for still cameras and other systems which require high density non-volatile memory data storage. Elite Semiconductor Microelectronics Technology Inc. Publication Date: Apr. 2021 Revision: 1.1 1/51 ESMT F59D4G81KA (2R) PIN CON

📥 Download Datasheet

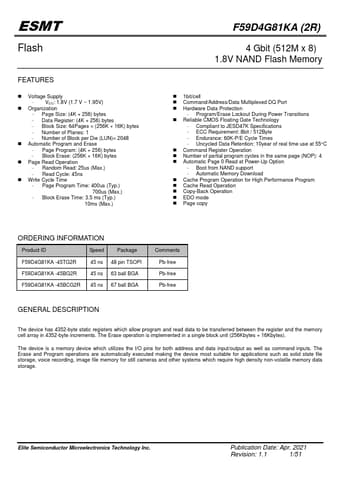

Preview of F59D4G81KA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
F59D4G81KA
Manufacturer
ESMT
File Size
1.32 MB
Datasheet
F59D4G81KA-ESMT.pdf
Description
4-Gbit 1.8V NAND Flash Memory
