F59D1G81LB-45BG2M, F59D1G81LB-45TG2M Datasheet - ESMT

F59D1G81LB-45BG2M 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory

F59D1G81LB-45BG2M Features

* Voltage Supply: 1.8V (1.7 V ~ 1.95V)

* Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit

* Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Era

F59D1G81LB-45TG2M-ESMT.pdf

This datasheet PDF includes multiple part numbers: F59D1G81LB-45BG2M, F59D1G81LB-45TG2M. Please refer to the document for exact specifications by model.

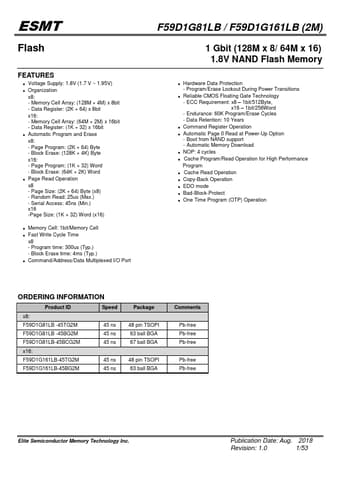

F59D1G81LB-45BG2M Datasheet Preview Page 2 F59D1G81LB-45BG2M Datasheet Preview Page 3

Datasheet Details

Part number:

F59D1G81LB-45BG2M, F59D1G81LB-45TG2M

Manufacturer:

ESMT

File Size:

1.75 MB

Description:

1 gbit (128m x 8/ 64m x 16) 1.8v nand flash memory.

Note:

This datasheet PDF includes multiple part numbers: F59D1G81LB-45BG2M, F59D1G81LB-45TG2M.
Please refer to the document for exact specifications by model.
