EN25S32A-2S - 32 Megabit 1.8V Serial Flash Memory

EON

📥 Download Datasheet

EN25S32A-2S Datasheet Preview — Preview of EN25S32A-2S PDF

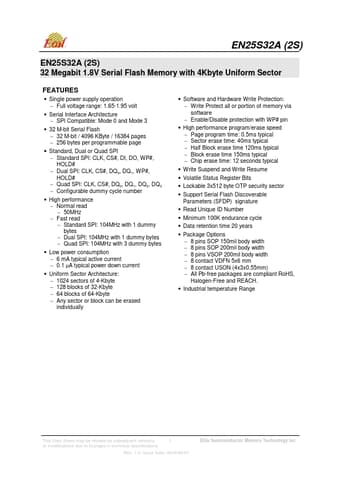

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EN25S32A-2S
Manufacturer	EON
File Size	1.53 MB
Description	32 Megabit 1.8V Serial Flash Memory
Datasheet	EN25S32A-2S-EON.pdf

EN25S32A-2S Product details

Features

Single power supply operation.
Full voltage range: 1.65-1.95 volt.
Serial Interface Architecture.
SPI Compatible: Mode 0 and Mode 3.
32 M-bit Serial Flash.
32 M-bit / 4096 KByte / 16384 pages.
256 bytes per programmable page.
Standard, Dual or Quad SPI.
Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#.
Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#.
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
Configurabl.
