EN25S16B-2S - 16 Megabit 1.8V Serial Flash Memory

EON

📥 Download Datasheet

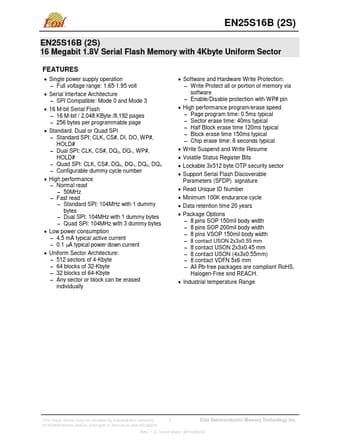

EN25S16B-2S Datasheet Preview — Preview of EN25S16B-2S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EN25S16B-2S
Manufacturer	EON
File Size	2.00 MB
Description	16 Megabit 1.8V Serial Flash Memory
Datasheet	EN25S16B-2S-EON.pdf

EN25S16B-2S Product details

Features

Single power supply operation.
Full voltage range: 1.65-1.95 volt.
Serial Interface Architecture.
SPI Compatible: Mode 0 and Mode 3.
16 M-bit Serial Flash.
16 M-bit / 2,048 KByte /8,192 pages.
256 bytes per programmable page.
Standard, Dual or Quad SPI.
Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#.
Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#.
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
Configurable dummy cycle nu.
