EN25S20A - 2 Megabit 1.8V Serial Flash Memory

EON

📥 Download Datasheet

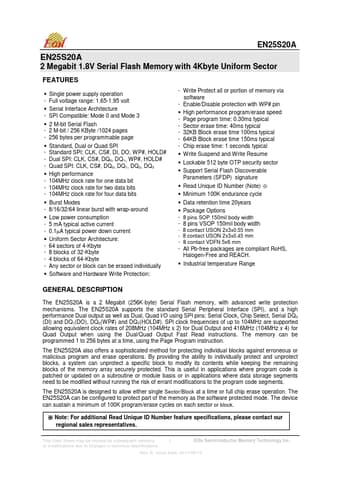

EN25S20A Datasheet Preview — Preview of EN25S20A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EN25S20A
Manufacturer	EON
File Size	1.15 MB
Description	2 Megabit 1.8V Serial Flash Memory
Datasheet	EN25S20A-EON.pdf

EN25S20A Product details

Features

Single power supply operation - Full voltage range: 1.65-1.95 volt.
Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3.
2 M-bit Serial Flash - 2 M-bit / 256 KByte /1024 pages - 256 bytes per programmable page.
Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI, DO, WP#, HOLD# - Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD# - Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
High performance - 104MHz clock rate for one data bit - 104MHz clock rat.
