EN25S32A - (2SC) 32 Megabit 1.8V Serial Flash Memory

EON

📥 Download Datasheet

EN25S32A Datasheet Preview — Preview of EN25S32A PDF

Datasheet Details

Part number	EN25S32A
Manufacturer	EON
File Size	2.23 MB
Description	(2SC) 32 Megabit 1.8V Serial Flash Memory
Datasheet	EN25S32A-EON.pdf

EN25S32A Product details

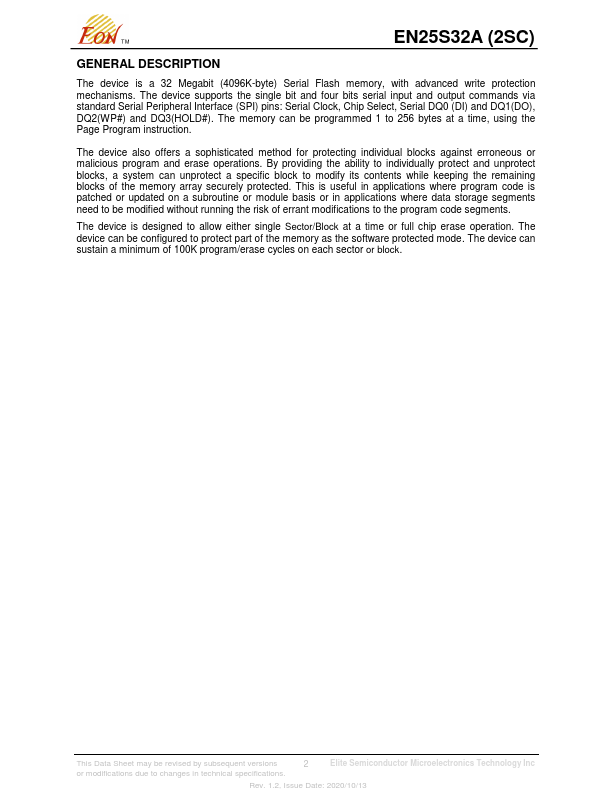

Description

preliminary The device is a 32 Megabit (4096K-byte) Serial Flash memory, with advanced write protection mechanisms.The device supports the single bit and four bits serial input and output commands via standard Serial Peripheral Interface (SPI) pins: Serial Clock, Chip Select, Serial DQ0 (DI) and DQ1(DO), DQ2(WP#) and DQ3(HOLD#).The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.The device also offers a sophisticated method for protecting individua

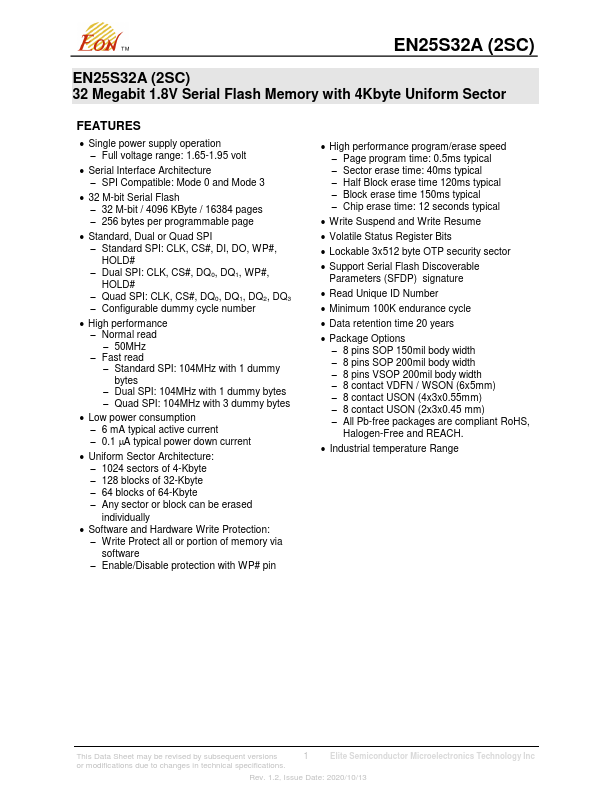

Features

Single power supply operation.
Full voltage range: 1.65-1.95 volt.
Serial Interface Architecture.
SPI Compatible: Mode 0 and Mode 3.
32 M-bit Serial Flash.
32 M-bit / 4096 KByte / 16384 pages.
256 bytes per programmable page.
Standard, Dual or Quad SPI.
Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#.
Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#.
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
Configurable dummy cycle nu.
