EM9304 - Bluetooth5.0 low-energy COMPANION-or-SOC

EM Microelectronic

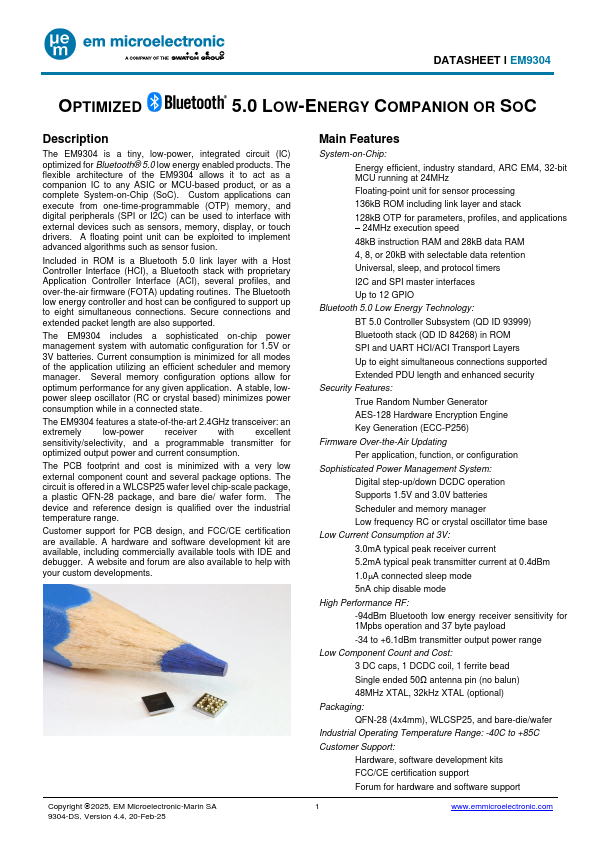

The EM9304 by EM Microelectronic is a Bluetooth5.0 low-energy COMPANION-or-SOC. Below is the official datasheet preview.

Datasheet Details

Part number	EM9304
Manufacturer	EM Microelectronic
File Size	1.46 MB
Description	Bluetooth5.0 low-energy COMPANION-or-SOC
Datasheet	EM9304-EMMicroelectronic.pdf

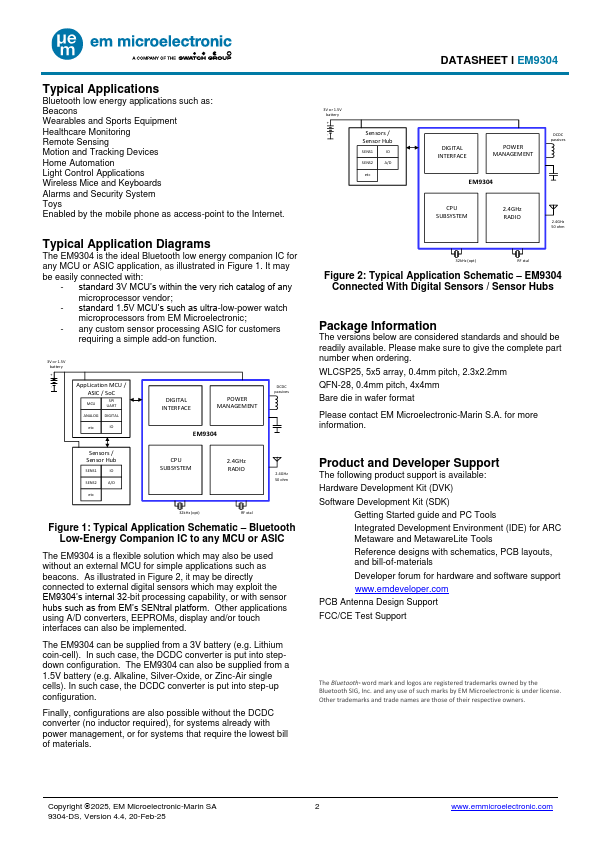

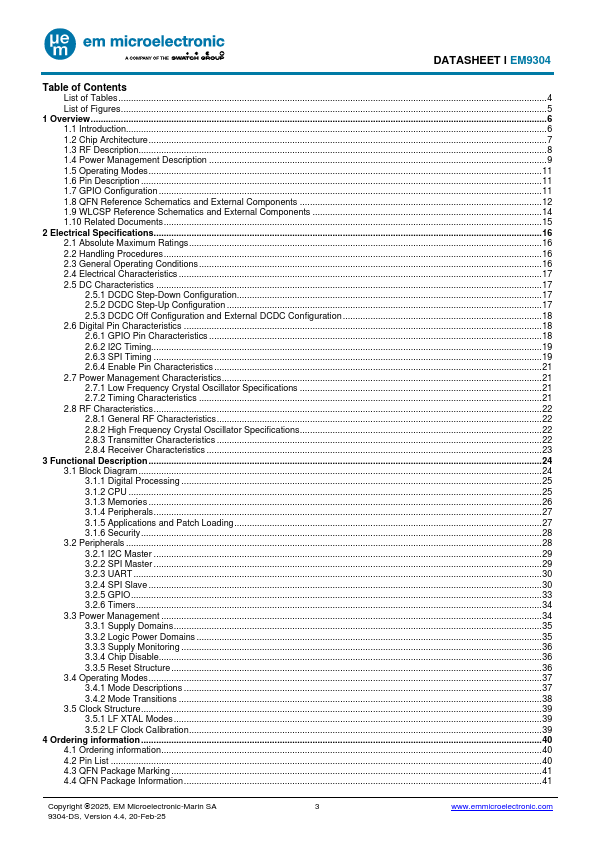

Additional preview pages of the EM9304 datasheet.

The EM9304 is a tiny, low-power, integrated circuit (IC) optimized for Bluetooth® 5.0 low energy enabled products.

a state-of-the-art 2.4GHz transceiver: an extremely low-power receiver with excellent sensitivity/selectivity, and a programmable transmitter for optimized output power and current consumption. The PCB footprint and cost is minimized with a very low external component count and several package options. The circuit is offered in a WLCSP25 wafer level chip-scale package, a plastic QFN-28 package, and bare die/ wafer form. The device and reference design is qualified over the industrial temperature.
