EM9010 - Advanced Multimedia Analog Overlay Chip

The EM9010 by Sigma Designs is a Advanced Multimedia Analog Overlay Chip. Below is the official datasheet preview.

Datasheet Details

Part number	EM9010
Manufacturer	Sigma Designs
File Size	95.39 KB
Description	Advanced Multimedia Analog Overlay Chip
Datasheet	EM9010_SigmaDesigns.pdf

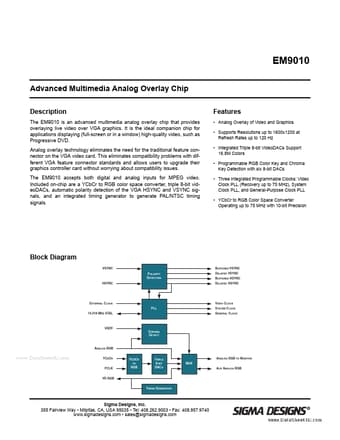

Additional preview pages of the EM9010 datasheet.

The EM9010 is an advanced multimedia analog overlay chip that provides overlaying live video over VGA graphics.

Analog Overlay of Video and Graphics.
Supports Resolutions up to 1600x1200 at Refresh Rates up to 120 Hz.
Integrated Triple 8-bit VideoDACs Support 16.8M Colors.
Programmable RGB Color Key and Chroma Key Detection with six 8-bit DACs.
Three Integrated Programmable Clocks: Video Clock PLL (Recovery up to 75 MHz), System Clock PLL, and General-Purpose Clock PLL.
YCbCr to RGB Color Space Converter Operating up to 75 MHz with 10-bit Precision B.
