EM91210 - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

ELAN Microelectronics Corp

Datasheet Details

Part number	EM91210
Manufacturer	ELAN Microelectronics Corp
File Size	143.53 KB
Description	TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE
Datasheet	EM91210_ELANMicroelectronicsCorp.pdf

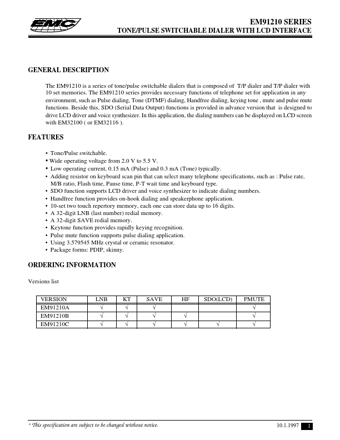

The EM91210 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 10 set memories.

Tone/Pulse switchable.
Wide operating voltage from 2.0 V to 5.5 V.
Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, Pause time, P-T wait time and keyboard type.
SDO function supports LCD driver and voice synthesizer to indicate dialing numbers.
Handfree function provides on-hook dialing and.
