EM9209 - FSK Transceiver

Description

The EM9209 is a 1.5kbps to 72kbps low-power, low-voltage, single chip 2.4GHz ISM band RF transceiver ideal for battery operated wireless applications such as wireless sensors and control, gaming, human interface devices, and security networks.

Features

  • Low Voltage:.
  • 1.9V to 3.6V battery operation.
  • Low Power:.
  • 7mA in RX normal sensitivity mode (NS).
  • 8mA in RX high sensitivity mode (HS).
  • TX Mode: 11mA @-1dBm, 36mA @+10dBm.

📥 Download Datasheet

Datasheet Details

Part number EM9209
Manufacturer EM Microelectronic
File Size 0.99 MB
Description FSK Transceiver
Datasheet download datasheet EM9209 Datasheet

📁 Similar Datasheet

  • EM92547A - CALLER ID FSK DECODER (ELAN Microelectronics Corp)
  • EM92547B - CALLER ID FSK DECODER (ELAN Microelectronics Corp)
  • EM92547D - CALLER ID FSK DECODER (ELAN Microelectronics Corp)
  • EM92600A - DUAL PLL FOR 46/49 MHZ CORDLESS PHONE (ELAN Microelectronics Corp)
  • EM92601A - DUAL PLL FOR 46/49 MHZ CORDLESS PHONE (ELAN Microelectronics Corp)
  • EM9010 - Advanced Multimedia Analog Overlay Chip (Sigma Designs)
  • EM9038 - Analog Multiplexor And Digital-to-analog Converter (Sigma Designs)
  • EM91203 - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91203A - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
  • EM91203B - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE (ELAN Microelectronics Corp)
Other Datasheets by EM Microelectronic
  • EM9201 - Low power 2.4 GHz Transceiver
  • EM9202 - Worlds First Fully Integrated Single-Cell Battery 2.4GHz Transceiver
  • EM9203 - 2.4GHz GFSK Transceiver
  • EM9301 - Single-Cell Battery Bluetooth Low-Energy Controller
  • EM9304 - Bluetooth5.0 low-energy COMPANION-or-SOC
  • EM9305 - BLUETOOTH LE SOC AND COMPANION CHIP

Full PDF Text Transcription

Click to expand full text

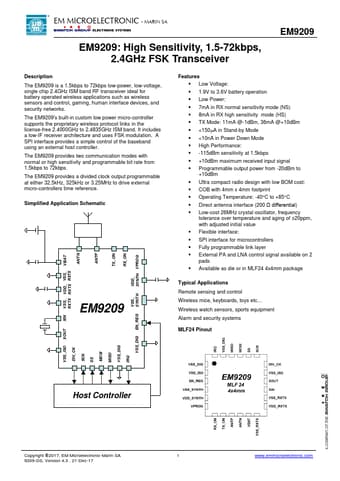

EM MICROELECTRONIC - MARIN SA EM9209: High Sensitivity, 1.5-72kbps, 2.4GHz FSK Transceiver EM9209 RXTX RXTX RXTX ANTN Description The EM9209 is a 1.5kbps to 72kbps low-power, low-voltage, single chip 2.4GHz ISM band RF transceiver ideal for battery operated wireless applications such as wireless sensors and control, gaming, human interface devices, and security networks. The EM9209's built-in custom low power micro-controller supports the proprietary wireless protocol links in the license-free 2.4000GHz to 2.4835GHz ISM band. It includes a low-IF receiver architecture and uses FSK modulation. A SPI interface provides a simple control of the baseband using an external host controller.
