PI3PCIE3242A - 3.3V PCI Express 3.0 4 Channel 2x2 Exchange Switch

Name: PI3PCIE3242A
SKU: PI3PCIE3242A-1579167

DIODES

The PI3PCIE3242A by DIODES is a 3.3V PCI Express 3.0 4 Channel 2x2 Exchange Switch. Below is the official datasheet preview.

Datasheet Details

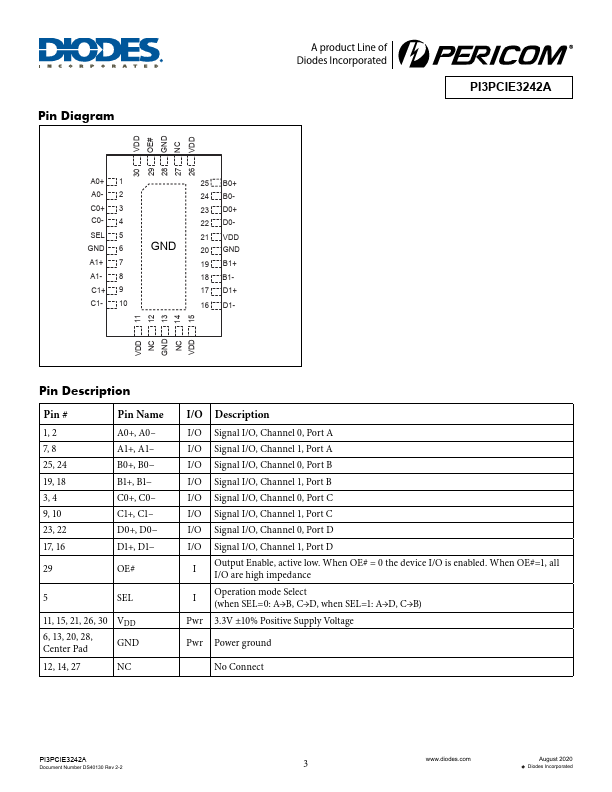

Part number	PI3PCIE3242A
Manufacturer	DIODES
File Size	1.01 MB
Description	3.3V PCI Express 3.0 4 Channel 2x2 Exchange Switch
Datasheet	PI3PCIE3242A-DIODES.pdf

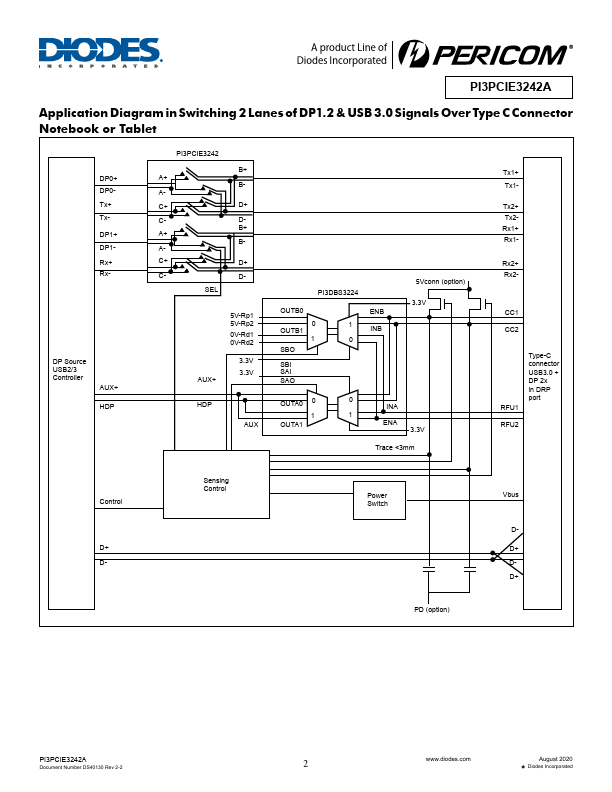

Additional preview pages of the PI3PCIE3242A datasheet.

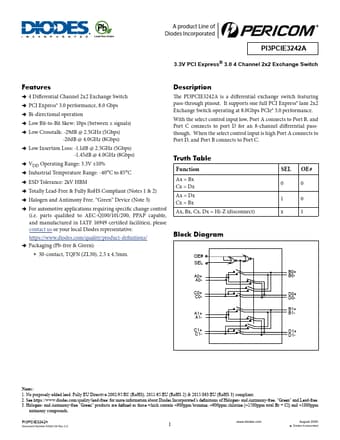

The PI3PCIE3242A is a differential exchange switch featuring pass-through pinout.

ÎÎ4 Differential Channel 2x2 Exchange Switch ÎÎPCI Express® 3.0 performance, 8.0 Gbps ÎÎBi-directional operation ÎÎLow Bit-to-Bit Skew: 10ps (between ± signals) ÎÎLow Crosstalk: -29dB @ 2.5GHz (5Gbps) -20dB @ 4.0GHz (8Gbps) ÎÎLow Insertion Loss: -1.1dB @ 2.5GHz (5Gbps) -1.45dB @ 4.0GHz (8Gbps) ÎÎVDD Operating Range: 3.3V ±10% ÎÎIndustrial Temperature Range: -40oC to 85oC ÎÎESD Tolerance: 2kV HBM ÎÎTotally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) ÎÎHalogen and Antimony F.
