PI3PCIE3415 - 2:1 Mux/DeMux Switch

Pericom Semiconductor Corporation

The PI3PCIE3415 by Pericom Semiconductor Corporation is a 2:1 Mux/DeMux Switch. Below is the official datasheet preview.

Datasheet Details

Part number	PI3PCIE3415
Manufacturer	Pericom Semiconductor Corporation
File Size	744.18 KB
Description	2:1 Mux/DeMux Switch
Datasheet	PI3PCIE3415-PericomSemiconductorCorporation.pdf

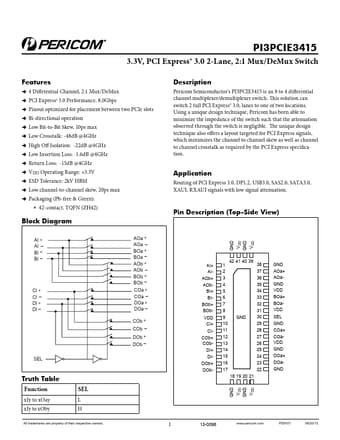

Additional preview pages of the PI3PCIE3415 datasheet.

Pericom Semiconductor’s PI3PCIE3415 is an 8 to 4 differential channel multiplexer/demultiplexer switch.

ÎÎ4 Differential Channel, 2:1 Mux/DeMux ÎÎPCI Express® 3.0 Performance, 8.0Gbps ÎÎPinout optimized for placement between two PCIe slots ÎÎBi-directional operation ÎÎLow Bit-to-Bit Skew, 10ps max ÎÎLow Crosstalk: -48dB @4GHz ÎÎHigh Off Isolation: -22dB @4GHz ÎÎLow Insertion Loss: -1.6dB @4GHz ÎÎReturn Loss: -15dB @4GHz ÎÎVDD Operating Range: +3.3V ÎÎESD Tolerance: 2kV HBM ÎÎLow channel-to-channel skew, 20ps max ÎÎPackaging (Pb-free & Green): àà 42-contact, TQFN (ZH42) Block Diagram.
