PI3A223 - Dual SPDT Analog Switch

📥 Download Datasheet

Preview of PI3A223 PDF

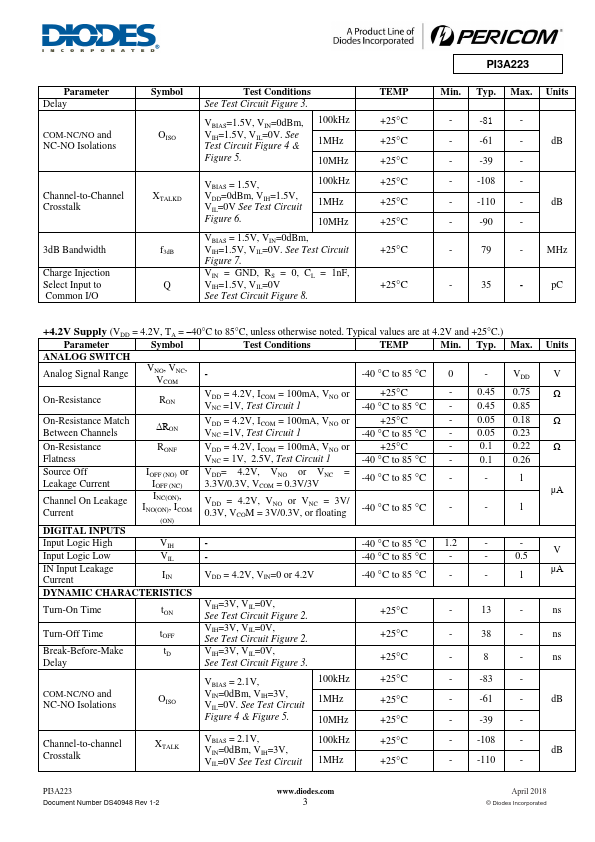

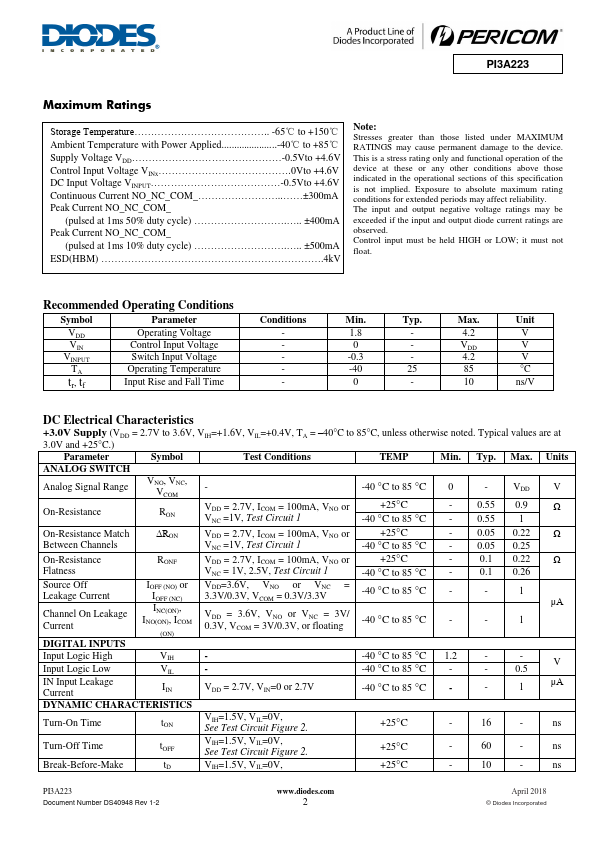

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PI3A223
Manufacturer DIODES
File Size 575.66 KB
Description Dual SPDT Analog Switch
Datasheet download datasheet PI3A223-DIODES.pdf

PI3A223 Product details

Description

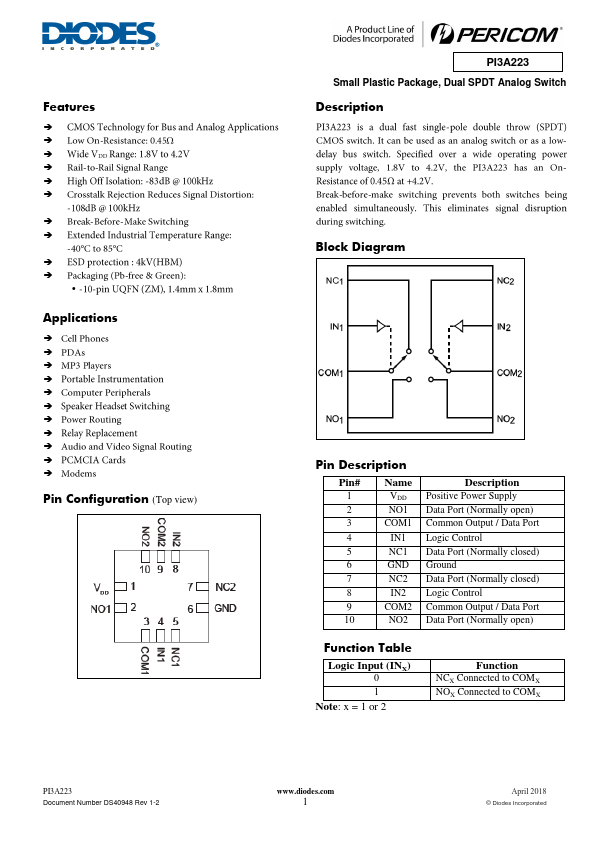

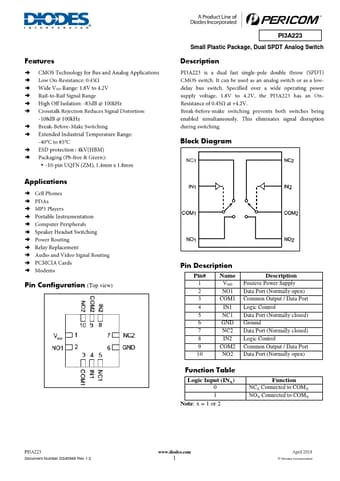

Block Diagram Pin Description Pin# 1 2 3 Name VDD NO1 COM1 4 IN1 5 NC1 6 GND 7 NC2 8 IN2 9 COM2 10 NO2 Description Positive Power Supply Data Port (Normally open) Common Output / Data Port Logic Control Data Port (Normally closed) Ground Data Port (Normally closed) Logic Control Common Output / Data Port Data Port (Normally open) Function Table Logic Input (INX) 0 1 Note: x = 1 or 2 Function NCX Connected to COMX NOX Connected to COMX www.diodes.com 1 April 2018 © Diodes In
