PI3A3899 - Dual DPDT Analog Switch

DIODES

📥 Download Datasheet

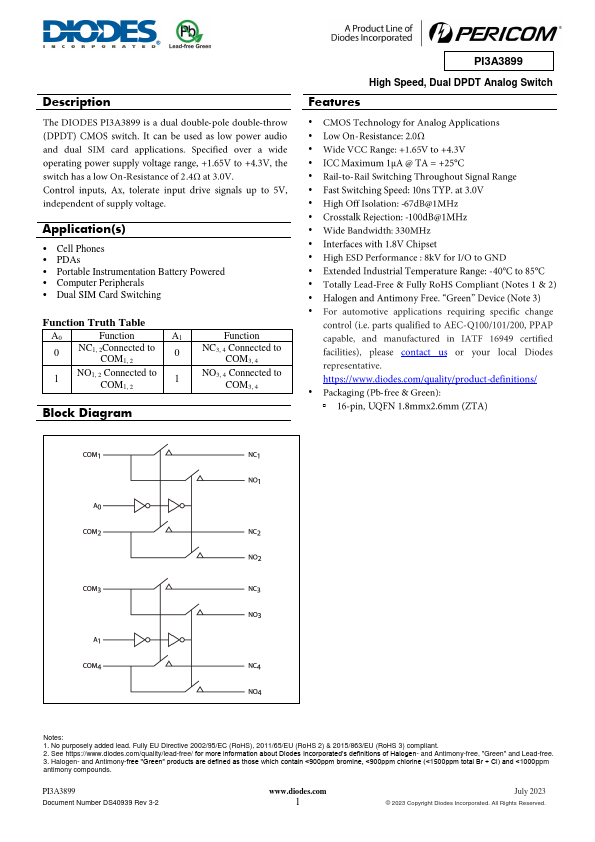

PI3A3899 Datasheet Preview — Preview of PI3A3899 PDF

Datasheet Details

Part number	PI3A3899
Manufacturer	DIODES
File Size	666.00 KB
Description	Dual DPDT Analog Switch
Datasheet	PI3A3899-DIODES.pdf

PI3A3899 Product details

Description

Application(s) Cell Phones PDAs Portable Instrumentation Battery Powered Computer Peripherals Dual SIM Card Switching Function Truth Table A0 Function A1 0 NC1, 2Connected to COM1, 2 0 1 NO1, 2 Connected to COM1, 2 1 Block Diagram Function NC3, 4 Connected to COM3, 4 NO3, 4 Connected to COM3, 4 PI3A3899 High Speed, Dual DPDT Analog Switch

Features

 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www. diodes. com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain.
