PI3A2268 - Dual SPDT Analog Switch

DIODES

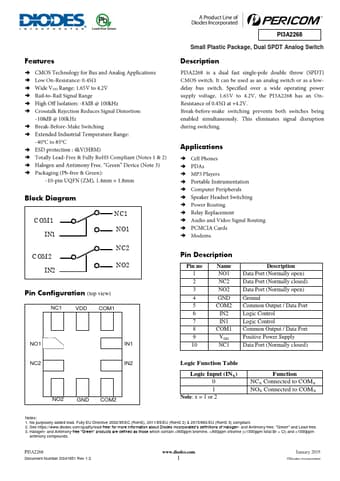

PI3A2268 Datasheet Preview — Preview of PI3A2268 PDF

Datasheet Details

Part number	PI3A2268
Manufacturer	DIODES ↗
File Size	719.68 KB
Description	Dual SPDT Analog Switch
Datasheet	PI3A2268-DIODES.pdf

PI3A2268 Product details

Description

Applications            Pin Description Pin no 1 2 3 4 5 6 7 8 9 10 Name NO1 NC2 NO2 GND COM2 IN2 IN1 COM1 VDD NC1 Description Data Port (Normally open) Data Port (Normally closed) Data Port (Normally open) Ground Common Output / Data Port Logic Control Logic Control Common Output / Data Port Positive Power Supply Data Port (Normally closed) NC2 IN2 NO2 GND COM2 Logic Function Table Logic Input (INX) 0 1 Note: x = 1 or 2 Function NCX Connected to COMX NOX Connected to COMX

Features

            Block Diagram C OM1 IN1 C OM2 IN2 NC1 N O1 NC2 N O2 Pin Configuration (top view) NC1 VDD COM1 NO1 IN1 PI3A2268 Small Plastic Package, Dual SPDT Analog Switch.
