CYWUSB6953 - WirelessUSB PRoC Flash Programmable MCU Radio

Cypress Semiconductor

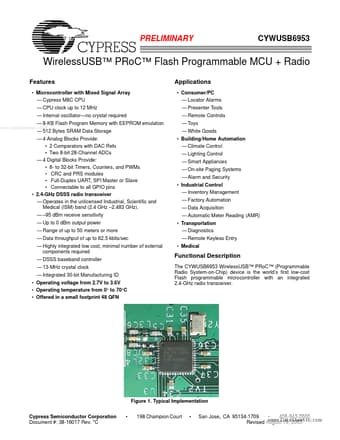

CYWUSB6953 Datasheet Preview — Preview of CYWUSB6953 PDF

Datasheet Details

Part number	CYWUSB6953
Manufacturer	Cypress Semiconductor
File Size	327.63 KB
Description	WirelessUSB PRoC Flash Programmable MCU Radio
Datasheet	CYWUSB6953_CypressSemiconductor.pdf

CYWUSB6953 Product details

Description

The CYWUSB6953 WirelessUSB™ PRoC™ (Programmable Radio System-on-Chip) device is the world’s first low-cost Flash programmable microcontroller with an integrated 2.4-GHz radio transceiver. C 198 Champion Court San Jose, CA 95134-1709 408-943-2600 Revised August 19, 2005 PRELIMINARY PRoC Block Diagram P0 P1 P2 CYWUSB6953 IRQ, MISO 8KB Flash 512B SRAM IO Ports X13_O

Features

Microcontroller with Mixed Signal Array.
Cypress M8C CPU.
CPU clock up to 12 MHz.
Internal oscillator.
no crystal required www. DataSheet4U. com.
