CYWUSB6941 - WirelessUSB EX Radio

Description

5 www.DataSheet4U.com 5.0 RADIO CONTROL INTERFACE 8 5.1 Radio/Baseband Interface Connections 8 6.0 ABSOLUTE MAXIMUM RATINGS 9 7.0 OPERATING CONDITIONS 9 8.0 DC CHARACTERISTICS 9 9.0 RADIO SPECIFICATION 10 10.0 AC CHARACTERISTICS 11 10.1 Transmit and Receive Timing Diagrams 12 11.0 AC Test

Features

  • 2.0.

📥 Download Datasheet

📁 Similar Datasheet

  • CYW20706 - single-chip Bluetooth 5.4 LE SoC (INFINEON)
  • CYW20707 - Bluetooth SoC (Cypress)
  • CYW20719 - Bluetooth processor (Infineon)
  • CYW20736 - Bluetooth Low Energy System-on-chip (Infineon)
  • CYW20822-P4EPI040 - Bluetooth Low Energy module (Infineon)
  • CYW20822-P4TAI040 - Bluetooth Low Energy module (Infineon)
  • CYW20829 - Low Energy 5.4 MCU (Infineon)
  • CYW20835 - Bluetooth LE system on chip (Infineon)
  • CYW43022 - Wi-Fi & Bluetooth combo (Infineon)
  • CYW43353 - Single-Chip 5G MAC/Baseband/Radio (Cypress)
Other Datasheets by Cypress Semiconductor

Full PDF Text Transcription

Click to expand full text

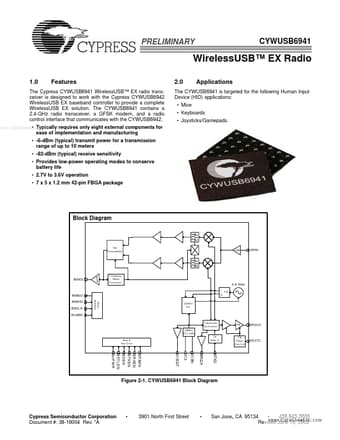

PRELIMINARY CYWUSB6941 WirelessUSB™ EX Radio 1.0 Features 2.0 Applications The Cypress CYWUSB6941 WirelessUSB™ EX radio transceiver is designed to work with the Cypress CYWUSB6942 WirelessUSB EX baseband controller to provide a complete WirelessUSB EX solution. The CYWUSB6941 contains a 2.4-GHz radio transceiver, a GFSK modem, and a radio control interface that communicates with the CYWUSB6942. • Typically requires only eight external components for www.DataSheet4U.com ease of implementation and manufacturing • -6-dBm (typical) transmit power for a transmission range of up to 10 meters • -82-dBm (typical) receive sensitivity • Provides low-power operating modes to conserve battery life • 2.7V to 3.6V operation • 7 x 5 x 1.
