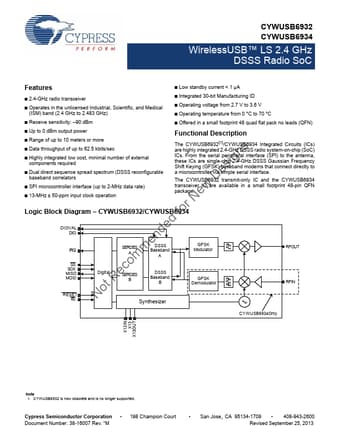

CYWUSB6932 CYWUSB6934
WirelessUSB™ LS 2.4 GHz DSSS Radio SoC
Not Recommended for New Designs
WirelessUSB™ LS 2.4 GHz DSSS Radio SoC
Features
■ 2.4-GHz radio transceiver ■ Operates in the unlicensed Industrial, Scientific, and Medical
(ISM) band (2.4 GHz to 2.483 GHz) ■ Receive sensitivity: –90 dBm ■ Up to 0 dBm output power ■ Range of up to 10 meters or more ■ Data throughput of up to 62.5 kbits/sec ■ Highly integrated low cost, minimal number of external
components required ■ Dual direct sequence spread spectrum (DSSS reconfigurable
baseband correlators ■ SPI microcontroller interface (up to 2-MHz data rate) ■ 13-MHz ± 50-ppm input clock operation
■ Low standby current < 1 µA ■ Integrated 30-bit Manufacturing ID ■ Operating voltage from 2.7 V to 3.
CYWUSB6932 Datasheet
