CYWUSB6934, CYWUSB6932 - (CYWUSB6932 / CYWUSB6934) DSSS Radio SoC

Cypress Semiconductor

📥 Download Datasheet

CYWUSB6934 Datasheet Preview — This datasheet PDF includes multiple part numbers: CYWUSB6934, CYWUSB6932. Please refer to the document for exact specifications by model.

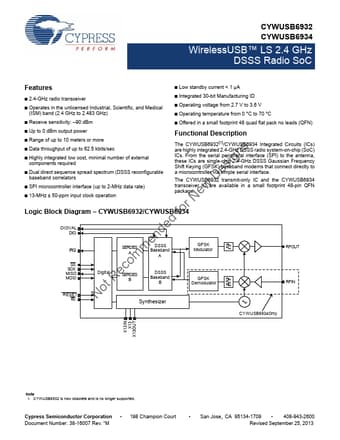

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CYWUSB6934, CYWUSB6932
Manufacturer	Cypress Semiconductor
File Size	0.99 MB
Description	(CYWUSB6932 / CYWUSB6934) DSSS Radio SoC
Datasheet	CYWUSB6932_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CYWUSB6934, CYWUSB6932. Please refer to the document for exact specifications by model.

CYWUSB6934 Product details

Description

The CYWUSB6932[1]/CYWUSB6934 Integrated Circuits (ICs) are highl

Features

2.4-GHz radio transceiver.
Operates in the unlicensed Industrial, Scientific, and Medical (ISM) band (2.4 GHz to 2.483 GHz).
Receive sensitivity:.
90 dBm.
Up to 0 dBm output power.
Range of up to 10 meters or more.
Data throughput of up to 62.5 kbits/sec.
Highly integrated low cost, minimal number of external components required.
Dual direct sequence spread spectrum (DSSS reconfigurable baseband correlators.
SPI microcontroller interface (up.
