CYW15G0101DXB

The CYW15G0101DXB is Single-channel HOTLink Transceiver designed by Cypress Semiconductor.

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CYW15G0101DXB
Manufacturer	Cypress Semiconductor
File Size	508.52 KB
Description	Single-channel HOTLink Transceiver
Datasheet	CYW15G0101DXB_CypressSemiconductor.pdf

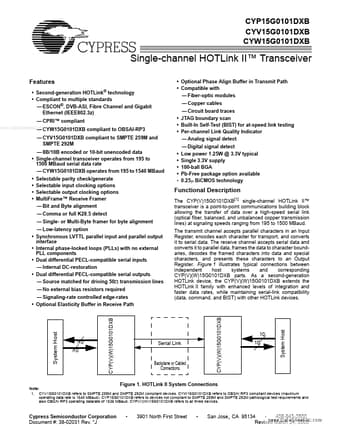

Additional preview pages of the CYW15G0101DXB datasheet.

Product details

Description

The CYP(V)15G0101DXB[1] single-channel HOTLink II™ transceiver is a point-to-point communications building block allowing the transfer of data over a high-speed serial link (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195 to 1500 MBaud.

Features

Second-generation HOTLink® technology.
Compliant to multiple standards.
ESCON®, DVB-ASI, Fibre Channel and Gigabit Ethernet (IEEE802.3z).
CPRI™ compliant www. DataSheet4U. com.
CYW15G0101DXB compliant to OBSAI-RP3.
Optional Phase Align Buffer in Transmit Path.
Compatible with.
Fiber-optic modules.
Copper cables.
Circuit board traces.
JTAG boundary scan.
Built-In Self-Test (BIST) for at-spe.
