CYW15G0401DXB - Transceiver

Cypress Semiconductor

The CYW15G0401DXB by Cypress Semiconductor is a Transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	CYW15G0401DXB
Manufacturer	Cypress Semiconductor
File Size	646.58 KB
Description	Transceiver
Datasheet	CYW15G0401DXB_CypressSemiconductor.pdf

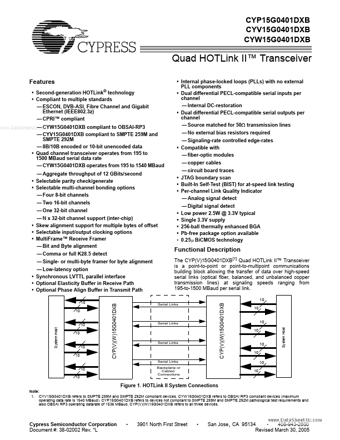

Additional preview pages of the CYW15G0401DXB datasheet.

CYW15G0401DXB Product details

Description

The CYP(V)15G0401DXB[1] Quad HOTLink II™ Transceiver is a point-to-point or point-to-multipoint communications building block allowing the transfer of data over high-speed serial links (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195-to-1500 MBaud per serial link.

Features

Second-generation HOTLink® technology.
Compliant to multiple standards.
ESCON, DVB-ASI, Fibre Channel and Gigabit Ethernet (IEEE802.3z).
CPRI™ compliant.
CYW15G0401DXB compliant to OBSAI-RP3 www. DataSheet4U. com.
CYV15G0401DXB compliant to SMPTE 259M and SMPTE 292M.
8B/10B encoded or 10-bit unencoded data.
Quad channel transceiver operates from 195 to 1500 MBaud serial data rate.
CYW15G0401DXB operates from 195 to 1.
