CY7C1302DV25 - 9-Mbit Burst of Two Pipelined SRAMs

Cypress Semiconductor

Datasheet Details

Part number	CY7C1302DV25
Manufacturer	Cypress Semiconductor
File Size	245.82 KB
Description	9-Mbit Burst of Two Pipelined SRAMs
Datasheet	CY7C1302DV25_CypressSemiconductor.pdf

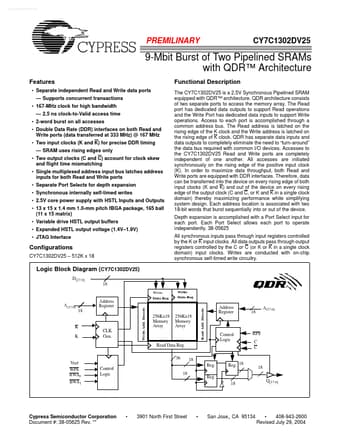

The CY7C1302DV25 is a 2.5V Synchronous Pipelined SRAM equipped with QDR™ architecture.

Separate independent Read and Write data ports.
Supports concurrent transactions.
167-MHz clock for high bandwidth.
2.5 ns clock-to-Valid access time.
2-word burst on all accesses.
Double Data Rate (DDR) interfaces on both Read and Write ports (data transferred at 333 MHz) @ 167 MHz.
Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
Two output clocks (C and C) account for clock skew an.
