CY7C1148KV18 18-Mbit DDR II+ SRAM Two-Word Burst Architecture

Cypress Semiconductor

Description

CY7C1148KV18/CY7C1150KV18 18-Mbit DDR II+ SRAM Two-Word Burst Architecture (2.0 Cycle Read Latency) 18-Mbit DDR II+ SRAM Two-Word Burst Architecture .

📥 Download Datasheet

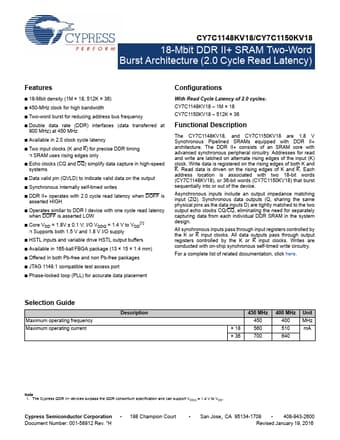

CY7C1148KV18 Datasheet Preview — Preview of CY7C1148KV18 PDF

Datasheet Specifications

Part number: CY7C1148KV18
Manufacturer: Cypress Semiconductor
File Size: 610.31 KB
Datasheet: CY7C1148KV18-CypressSemiconductor.pdf
Description: 18-Mbit DDR II+ SRAM Two-Word Burst Architecture

Features

* 18-Mbit density (1M × 18, 512K × 36)
* 450-MHz clock for high bandwidth
* Two-word burst for reducing address bus frequency
* Double data rate (DDR) interfaces (data transferred at 900 MHz) at 450 MHz
* Available in 2.0 clock cycle latency
* Two input clocks (K and K) for p
