CY2SSTV857-32 - Differential Clock Buffer/Driver DDR400/PC3200-Compliant

Cypress Semiconductor

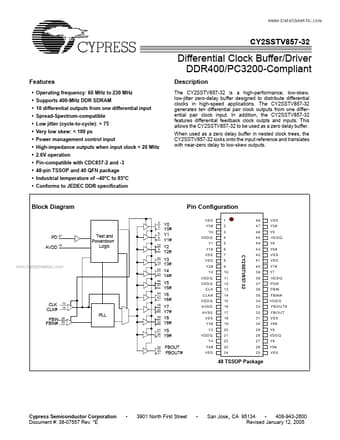

CY2SSTV857-32 Datasheet Preview — Preview of CY2SSTV857-32 PDF

Datasheet Details

Part number	CY2SSTV857-32
Manufacturer	Cypress Semiconductor
File Size	202.22 KB
Description	Differential Clock Buffer/Driver DDR400/PC3200-Compliant
Datasheet	CY2SSTV857-32_CypressSemiconductor.pdf

CY2SSTV857-32 Product details

Description

The CY2SSTV857-32 is a high-performance, low-skew, low-jitter zero-delay buffer designed to distribute differential clocks in high-speed applications.

Features

Operating frequency: 60 MHz to 230 MHz.
Supports 400-MHz DDR SDRAM.
10 differential outputs from one differential input.
Spread-Spectrum-compatible.
Low jitter (cycle-to-cycle): < 75.
Very low skew: < 100 ps.
Power management control input.
High-impedance outputs when input clock < 20 MHz.
2.6V operation.
Pin-compatible with CDC857-2 and -3.
48-pin TSSOP and 40 QFN package.
Industrial tem.
