CY2SSTV857-27 - Differential Clock Buffer/Driver DDR333/PC2700-Compliant

Silicon Laboratories

The CY2SSTV857-27 by Silicon Laboratories is a Differential Clock Buffer/Driver DDR333/PC2700-Compliant. Below is the official datasheet preview.

📥 Download Datasheet

CY2SSTV857-27 Differential Clock Buffer/Driver DDR333/PC2700-Compliant by Silicon Laboratories - Datasheet Preview — Official preview page of the **CY2SSTV857-27** Differential Clock Buffer/Driver DDR333/PC2700-Compliant datasheet (Silicon Laboratories).

Datasheet Details

Part number	CY2SSTV857-27
Manufacturer	Silicon Laboratories
File Size	89.44 KB
Description	Differential Clock Buffer/Driver DDR333/PC2700-Compliant
Datasheet	CY2SSTV857-27-SiliconLaboratories.pdf

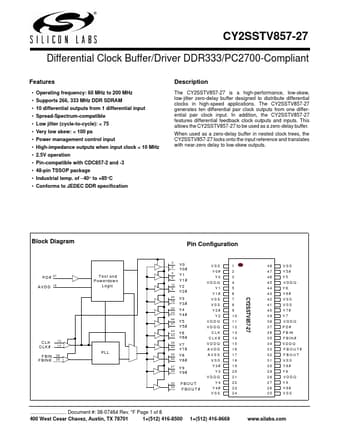

Additional preview pages of the CY2SSTV857-27 datasheet.

CY2SSTV857-27 Product details

Description

The CY2SSTV857-27 is a high-performance, low-skew, low-jitter zero-delay buffer designed to distribute differential clocks in high-speed applications.

Features

Operating frequency: 60 MHz to 200 MHz.
Supports 266, 333 MHz DDR SDRAM.
10 differential outputs from 1 differential input.
Spread-Spectrum-compatible.
Low jitter (cycle-to-cycle): < 75.
Very low skew: < 100 ps.
Power management control input.
High-impedance outputs when input clock < 10 MHz.
2.5V operation.
Pin-compatible with CDC857-2 and -3.
48-pin TSSOP package.
Industrial temp. of.
