CY2071A - Single-PLL General-Purpose EPROM Programmable Clock Generator

Cypress Semiconductor

📥 Download Datasheet

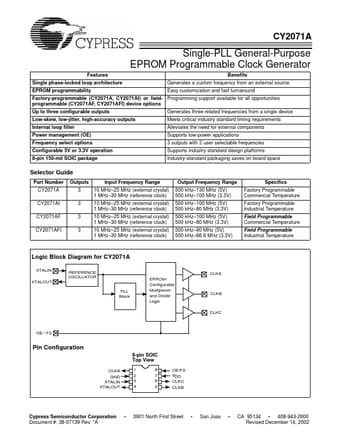

CY2071A Datasheet Preview — Preview of CY2071A PDF

Datasheet Details

Part number	CY2071A
Manufacturer	Cypress Semiconductor
File Size	118.65 KB
Description	Single-PLL General-Purpose EPROM Programmable Clock Generator
Datasheet	CY2071A_CypressSemiconductor.pdf

CY2071A Product details

Description

Configurable Clock Output Ground Reference Crystal Input or External Reference Clock Input Reference Crystal Feedback Configurable Clock Output Configurable Clock Output Voltage Supply Output Control Pin, either Output Enable or Frequency Select Input (Active-HIGH, internal pull-up resistor to VDD) Notes: 1. For best accuracy, use a parallel-resonant crystal, CL = 17 pF.2. Float XTALOUT pin if XTALIN is driven by reference clock (as opposed to an external crystal).Functional Description The

Features

Single phase-locked loop architecture EPROM programmability Benefits Generates a custom frequency from an external source Easy customization and fast turnaround Factory-programmable (CY2071A, CY2071AI) or field- Programming support available for all opportunities programmable (CY2071AF, CY2071AFI) device options Up to three configurable outputs Low-skew, low-jitter, high-accuracy outputs Internal loop filter Power management (OE) Frequency select options Configurable 5V or 3.3V operation 8-pin.
