CY2SSTV8575 - Differential Clock Buffer/Driver

Cypress Semiconductor

The CY2SSTV8575 by Cypress Semiconductor is a Differential Clock Buffer/Driver. Below is the official datasheet preview.

Datasheet Details

Part number	CY2SSTV8575
Manufacturer	Cypress Semiconductor
File Size	152.44 KB
Description	Differential Clock Buffer/Driver
Datasheet	CY2SSTV8575_CypressSemiconductor.pdf

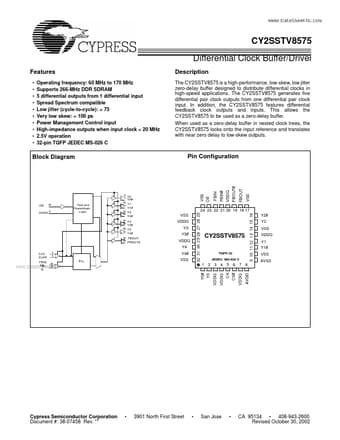

Additional preview pages of the CY2SSTV8575 datasheet.

The CY2SSTV8575 is a high-performance, low-skew, low jitter zero-delay buffer designed to distribute differential clocks in high-speed applications.

Operating frequency: 60 MHz to 170 MHz Supports 266-MHz DDR SDRAM 5 differential outputs from 1 differential input Spread Spectrum compatible Low jitter (cycle-to-cycle): < 75 Very low skew: < 100 ps Power Management Control input High-impedance outputs when input clock < 20 MHz 2.5V operation 32-pin TQFP JEDEC MS-026 C.
