TTDLF3000L, TTDLF2000L SMT Data Line EMI Filters

TTDLF3000L Description

Document 123-1 SMT Data Line EMI Filters * TTDLF As of August 2015, the TTDLF 10000 is no longer available; please consider our CCDLF 10000..

TTDLF3000L Applications

* They provide exceptional common mode noise attenuation from 15 MHz to 300 MHz while passing signal line data below 300 MHz with minimal attenuation. These low resistance filters have been designed for excellent electrical isolation (300 Vrms), environmental stability and low cost.       

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TTDLF3000L, TTDLF2000L. Please refer to the document for exact specifications by model.

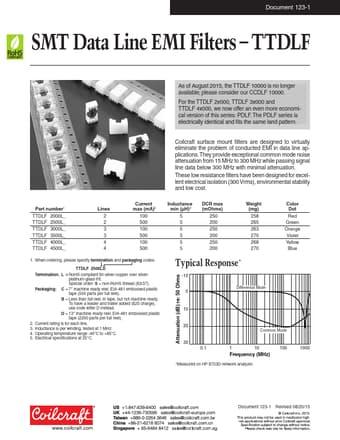

datasheet Preview Page 2

Datasheet Details

Part number
TTDLF3000L, TTDLF2000L
Manufacturer
Coilcraft
File Size
602.08 KB
Datasheet
TTDLF2000L-Coilcraft.pdf
Description
SMT Data Line EMI Filters
Note
This datasheet PDF includes multiple part numbers: TTDLF3000L, TTDLF2000L.
Please refer to the document for exact specifications by model.
