TTD1410 NPN Transistor

TTD1410 Description

isc Silicon NPN Darlington Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 250V(Min). Collector-Emitter Saturation Voltage- :V CE(sat)= 2. High D.

TTD1410 Applications

* Igniter applications
* High voltage switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 250 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 6 A IB Base Curr

📥 Download Datasheet

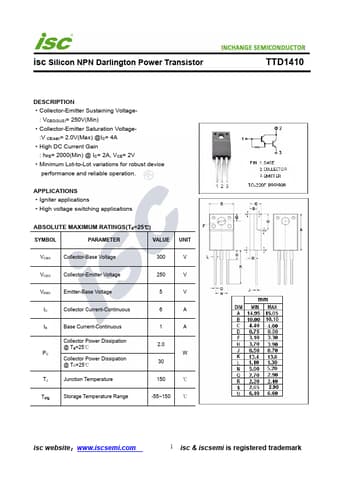

Preview of TTD1410 PDF
datasheet Preview Page 2

Datasheet Details

Part number
TTD1410
Manufacturer
INCHANGE
File Size
187.65 KB
Datasheet
TTD1410-INCHANGE.pdf
Description
NPN Transistor
