TTDLF2500L, TTDLF2000L SMT Data Line EMI Filters

Coilcraft

Description

Document 123-1 SMT Data Line EMI Filters * TTDLF As of August 2015, the TTDLF 10000 is no longer available; please consider our CCDLF 10000..

📥 Download Datasheet

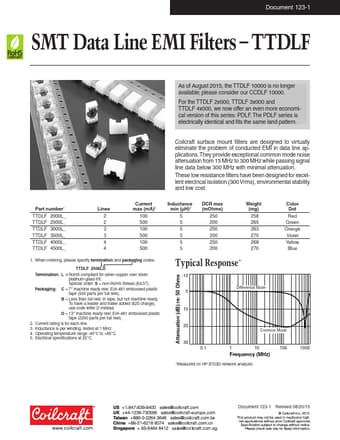

TTDLF2500L Datasheet Preview — This datasheet PDF includes multiple part numbers: TTDLF2500L, TTDLF2000L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TTDLF2500L, TTDLF2000L
Manufacturer: Coilcraft
File Size: 602.08 KB
Datasheet: TTDLF2000L-Coilcraft.pdf
Description: SMT Data Line EMI Filters
Note: This datasheet PDF includes multiple part numbers: TTDLF2500L, TTDLF2000L.
Please refer to the document for exact specifications by model.

Applications

* They provide exceptional common mode noise attenuation from 15 MHz to 300 MHz while passing signal line data below 300 MHz with minimal attenuation. These low resistance filters have been designed for excellent electrical isolation (300 Vrms), environmental stability and low cost.
