CRG120T75AX7HDZ - Silicon FS Trench IGBT

CRG120T75AX7HDZ Description

Silicon FS Trench IGBT CRG120T75AX7HDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG120T75AX7HDZ Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.43V @IC=120A,VGE=15V；

CRG120T75AX7HDZ Applications

* UPS
* Solar converts
* Charger VCES 750 V IC 120 A Ptot （TC=25℃） 491 W VCE(sat) 1.43 V Package:TO-247Plus Equivalent circuit: Package Parameters Type CRG120T75AX7HDZ Package TO-247Plus Marking G120T75AX7HDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. ,

📥 Download Datasheet

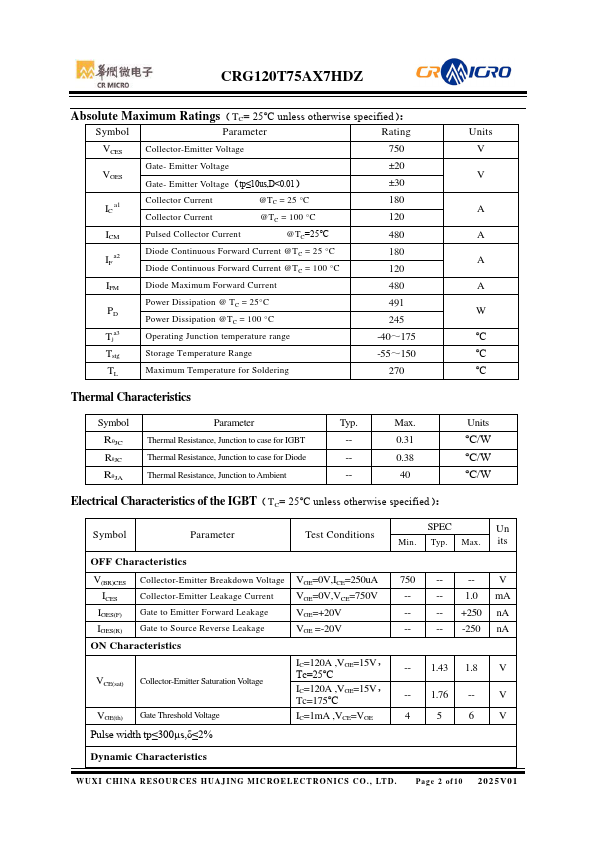

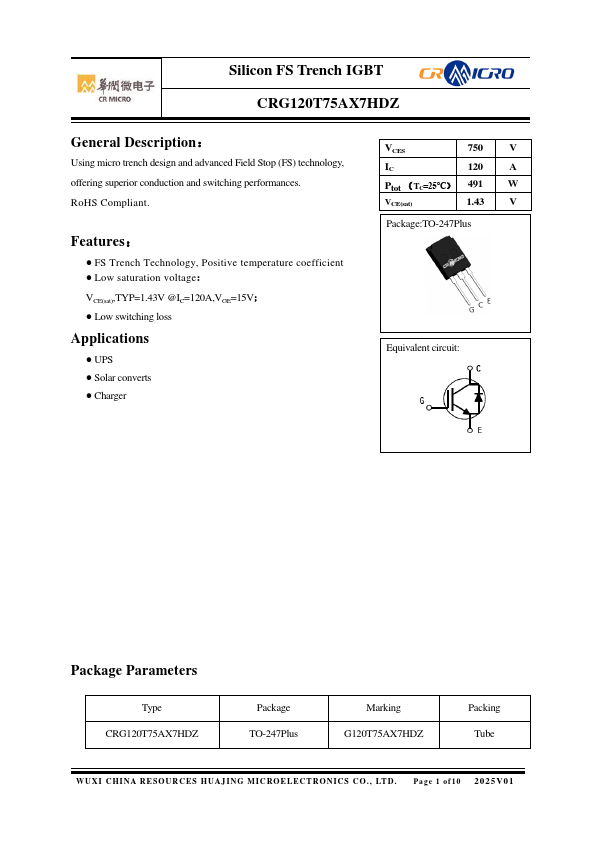

Preview of CRG120T75AX7HDZ PDF

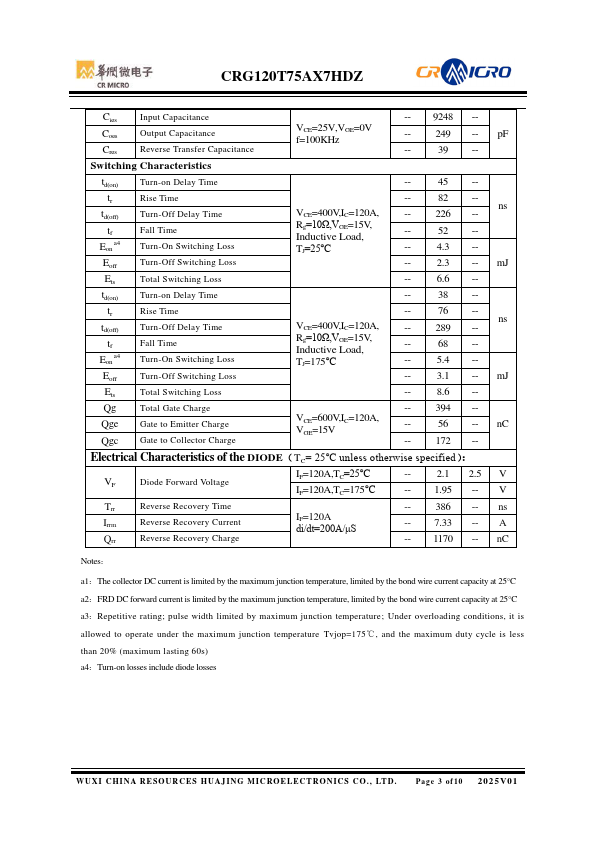

datasheet Preview Page 2 datasheet Preview Page 3
