CRG100T65RK5SDZ - Silicon FS Trench IGBT

CRG100T65RK5SDZ Description

Silicon FS Trench IGBT CRG100T65RK5SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG100T65RK5SDZ Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.55V @IC=100A,VGE=15V；

CRG100T65RK5SDZ Applications

* Motor Control
* Solar converts
* Charger VCES 650 V IC 100 A Ptot （TC=25℃） 540 W VCE(sat) 1.55 V Package:TO-247 Equivalent circuit: Package Parameters Type CRG100T65RK5SDZ Package TO-247 Marking G100T65RK5SDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO.

📥 Download Datasheet

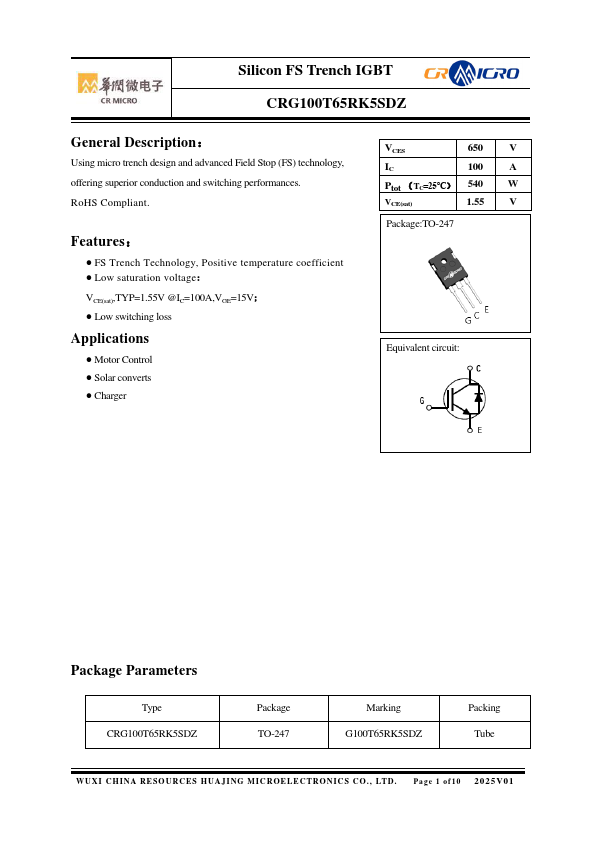

Preview of CRG100T65RK5SDZ PDF

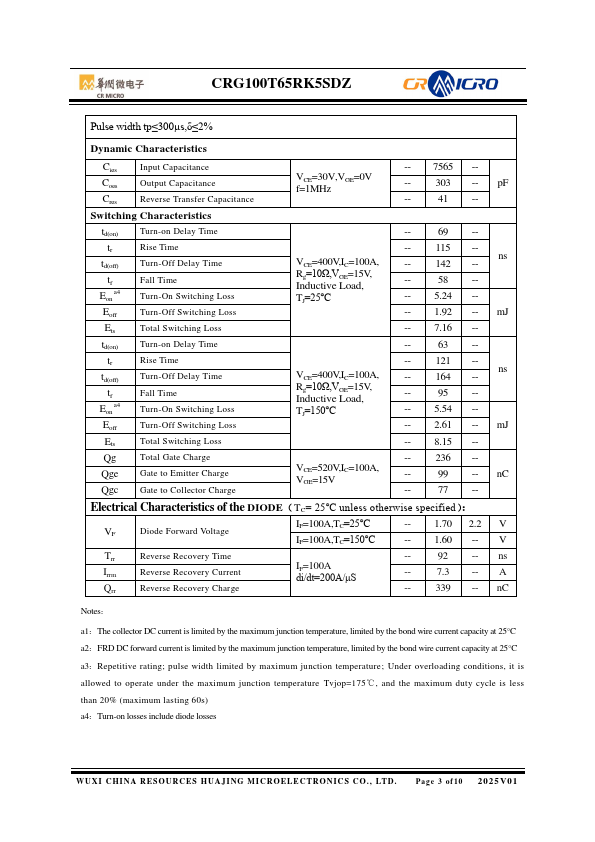

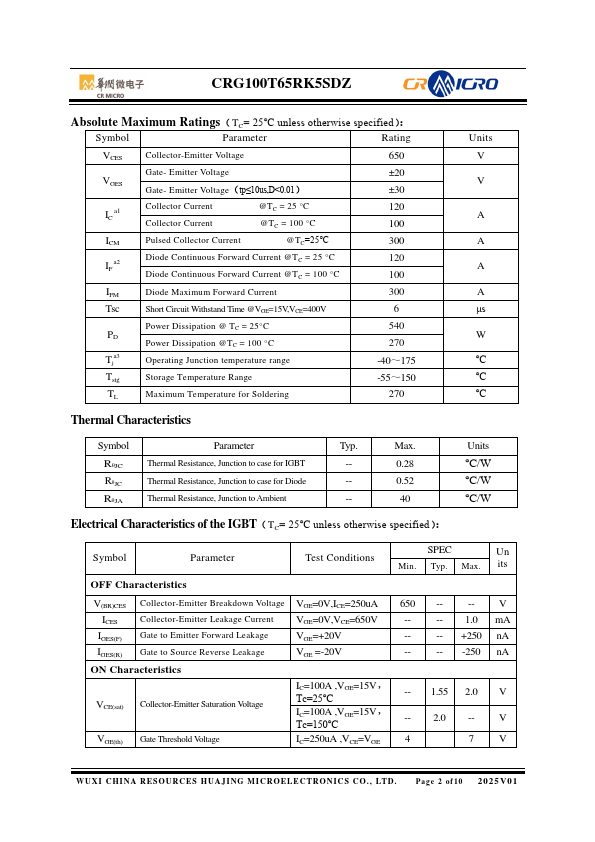

datasheet Preview Page 2 datasheet Preview Page 3
