CRG100T120BX5HDZ - Silicon FS Trench IGBT

CRG100T120BX5HDZ Description

Silicon FS Trench IGBT CRG100T120BX5HDZ General .
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG100T120BX5HDZ Features

* FS Trench Technology, Positive temperature coefficient

CRG100T120BX5HDZ Applications

* Solar Inverter
* ESS
* UPS Inner Circuit： Package Parameters Type CRG100T120BX5HDZ Marking G100T120BX5HDZ Package TO-247PLUS Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10 2025V01 CRG100T120BX5HDZ Absolute Maximum Ratings（TC= 25℃ unless otherw

📥 Download Datasheet

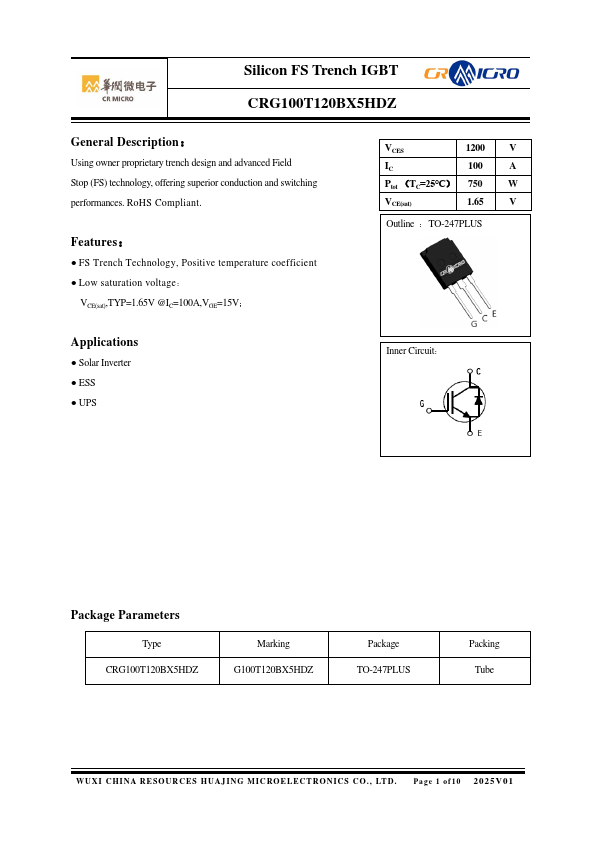

Preview of CRG100T120BX5HDZ PDF

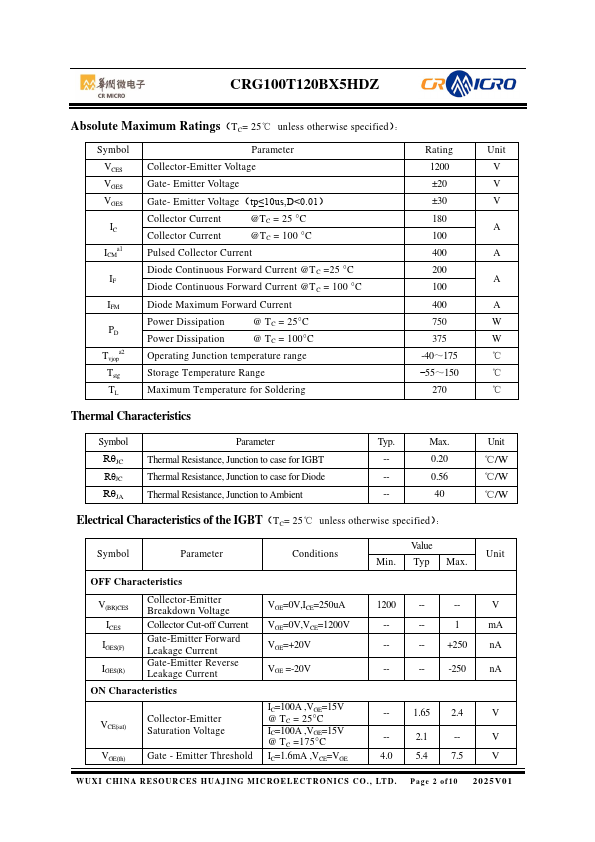

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRG100T120BX5HDZ
Manufacturer
CR Micro
File Size
1.00 MB
Datasheet
CRG100T120BX5HDZ-CRMicro.pdf
Description
Silicon FS Trench IGBT
