CRG120T65AX7HDZ - Silicon FS Trench IGBT

CRG120T65AX7HDZ Description

Silicon FS Trench IGBT CRG120T65AX7HDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG120T65AX7HDZ Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.33V @IC=120A,VGE=15V；

CRG120T65AX7HDZ Applications

* UPS
* Solar converts
* Charger VCES 650 V IC 120 A Ptot （TC=25℃） 511 W VCE(sat) 1.33 V Package:TO-247Plus Equivalent circuit: Package Parameters Type CRG120T65AX7HDZ Package TO-247Plus Marking G120T65AX7HDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. ,

📥 Download Datasheet

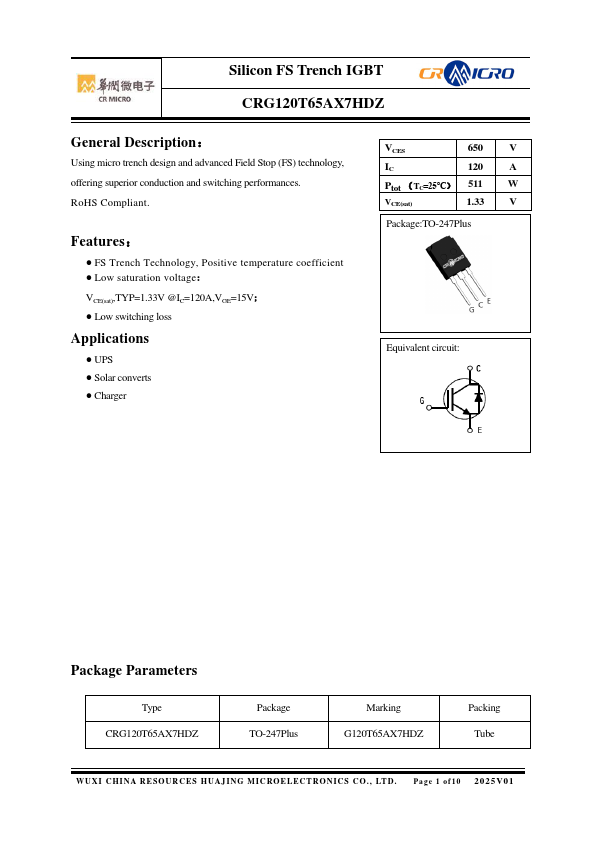

Preview of CRG120T65AX7HDZ PDF

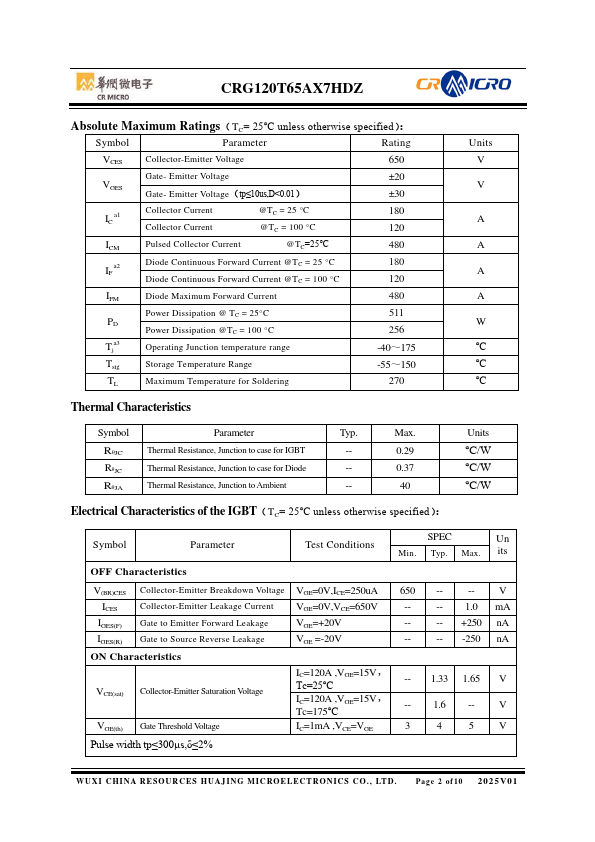

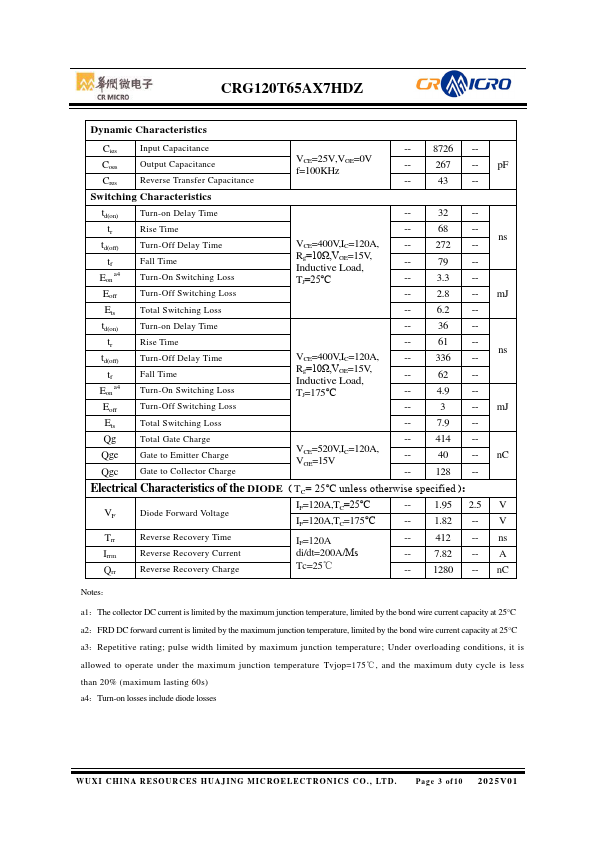

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRG120T65AX7HDZ
Manufacturer
CR Micro
File Size
1.26 MB
Datasheet
CRG120T65AX7HDZ-CRMicro.pdf
Description
Silicon FS Trench IGBT
