BS-A284ND - 7.10mm (0.28) high single segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

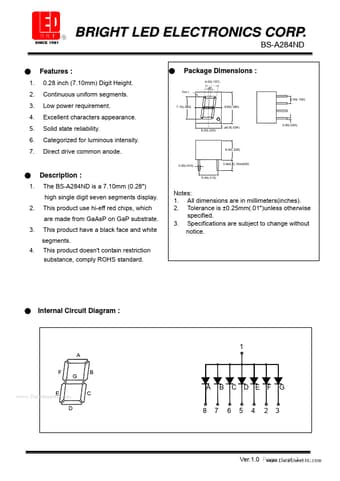

BS-A284ND Datasheet Preview — Preview of BS-A284ND PDF

Datasheet Details

Part number	BS-A284ND
Manufacturer	BRIGHT LED ELECTRONICS
File Size	158.07 KB
Description	7.10mm (0.28) high single segments dispaly
Datasheet	BS-A284ND_BRIGHTLEDELECTRONICS.pdf

BS-A284ND Product details

Description

: The BS-A284ND is a 7.10mm (0.28") high single digit seven segments display.This product use hi-eff red chips, which are made from GaAsP on GaP substrate.This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.5.40(.212) Notes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0.25mm(.01")unless otherwise specified.3. Specifications are subject to change without notice. Internal Circuit Diagram : 1 A

Features

: 0.28 inch (7.10mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode.
Package Dimensions : 4.00(.157) PIN 1. + 2.54(.100) 9.90(.390) 7.10(.280) 8.20(.323) 0.6(.024) 0.50(.020) 6.00(.236) 0.25(.010) 3.9±0.5(.154±020).
1. 2. 3. 4.
