BS-A283RD-A - 7.00mm (0.28) high single digit seven segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

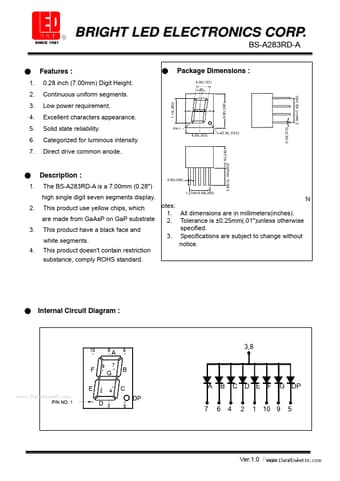

BS-A283RD-A Datasheet Preview — Preview of BS-A283RD-A PDF

Datasheet Details

Part number	BS-A283RD-A
Manufacturer	BRIGHT LED ELECTRONICS
File Size	173.71 KB
Description	7.00mm (0.28) high single digit seven segments dispaly
Datasheet	BS-A283RD-A_BRIGHTLEDELECTRONICS.pdf

BS-A283RD-A Product details

Description

: The BS-A283RD-A is a 7.00mm (0.28") high single digit seven segments display.This product use yellow chips, which are made from GaAsP on GaP substrate This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.0.50(.020) 1.27x4=5.08(.200) 6.10(.240) 3.9±0.5(.154±020) 0.30(.012) PIN 1. 9.90(.390) Low power requirement.2.54x3=7.62(.300) 7.10(.280) N otes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0

Features

: 0.28 inch (7.00mm) Digit Height. Continuous uniform segments.
Package Dimensions : 4.00(.157) Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode. + 8.20(.323).
1. 2. 3. 4.
