BS-A304RD-A - 7.62mm (0.30) high single digit seven segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

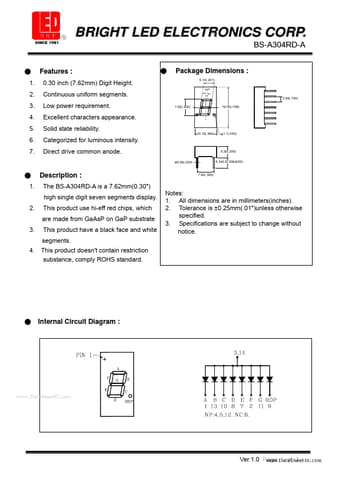

BS-A304RD-A Datasheet Preview — Preview of BS-A304RD-A PDF

Datasheet Details

Part number	BS-A304RD-A
Manufacturer	BRIGHT LED ELECTRONICS
File Size	184.94 KB
Description	7.62mm (0.30) high single digit seven segments dispaly
Datasheet	BS-A304RD-A_BRIGHTLEDELECTRONICS.pdf

BS-A304RD-A Product details

Description

: The BS-A304RD-A is a 7.62mm(0.30") high single digit seven segments display.This product use hi-eff red chips, which are made from GaAsP on GaP substrate This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.7.62(.300) Notes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0.25mm(.01")unless otherwise specified.3. Specifications are subject to change without notice. Internal Circuit Diagram : www

Features

: 0.30 inch (7.62mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode.
Package Dimensions : 5.10(.201) 10 2.54(.100) 7.62(.300) 19.00(.748) 10.10(.394) 1.1(.043) 5.20(.205) 0.50(.020) 5.3±0.5(.209±020).
1. 2. 3. 4.
