BS-A31DRD-B - 7.62mm (0.30) high single digit seven segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

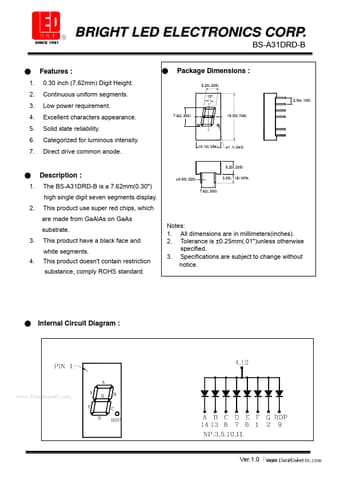

BS-A31DRD-B Datasheet Preview — Preview of BS-A31DRD-B PDF

Datasheet Details

Part number	BS-A31DRD-B
Manufacturer	BRIGHT LED ELECTRONICS
File Size	181.46 KB
Description	7.62mm (0.30) high single digit seven segments dispaly
Datasheet	BS-A31DRD-B_BRIGHTLEDELECTRONICS.pdf

BS-A31DRD-B Product details

Description

: The BS-A31DRD-B is a 7.62mm(0.30") high single digit seven segments display.This product use super red chips, which are made from GaAlAs on GaAs substrate.0.50(.020) 7.62(.300) 3.00(.118) MIN.3. 4. This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.Notes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0.25mm(.01")unless otherwise specified.3. Specifications are subject to change without notice.

Features

: 0.30 inch (7.62mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode.
Package Dimensions : 5.20(.205) 10 2.54(.100) 7.62(.300) 19.00(.748) 10.10(.394) 1.1(.043) 5.20(.205).
1. 2.
