BS-A282ND - 7.00mm (0.28) high single digit seven segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

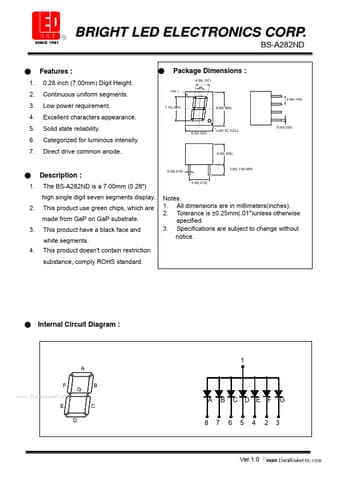

BS-A282ND Datasheet Preview — Preview of BS-A282ND PDF

Datasheet Details

Part number	BS-A282ND
Manufacturer	BRIGHT LED ELECTRONICS
File Size	170.10 KB
Description	7.00mm (0.28) high single digit seven segments dispaly
Datasheet	BS-A282ND_BRIGHTLEDELECTRONICS.pdf

BS-A282ND Product details

Description

: The BS-A282ND is a 7.00mm (0.28") high single digit seven segments display.This product use green chips, which are made from GaP on GaP substrate.This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.0.25(.010) 5.40(.212) 3.00(.118) MIN.Notes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0.25mm(.01")unless otherwise specified.3. Specifications are subject to change without notice. Internal C

Features

: 0.28 inch (7.00mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode.
Package Dimensions : 4.00(.157) PIN 1. + 2.54(.100) 9.90(.390) 7.10(.280) 0.50(.020) 8.20(.323) 6.00(.236).
1. 2. 3. 4.
