BS-A283RD-B - 7.00mm (0.28) high single digit seven segments dispaly

BRIGHT LED ELECTRONICS

📥 Download Datasheet

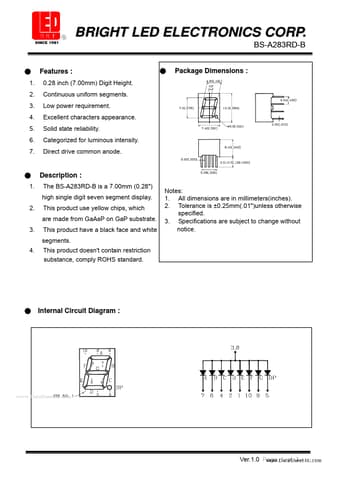

BS-A283RD-B Datasheet Preview — Preview of BS-A283RD-B PDF

Datasheet Details

Part number	BS-A283RD-B
Manufacturer	BRIGHT LED ELECTRONICS
File Size	172.67 KB
Description	7.00mm (0.28) high single digit seven segments dispaly
Datasheet	BS-A283RD-B_BRIGHTLEDELECTRONICS.pdf

BS-A283RD-B Product details

Description

: The BS-A283RD-B is a 7.00mm (0.28") high single digit seven segment display.This product use yellow chips, which are made from GaAsP on GaP substrate.This product have a black face and white segments.This product doesn't contain restriction substance, comply ROHS standard.Notes: 1. All dimensions are in millimeters(inches).2. Tolerance is ±0.25mm(.01")unless otherwise specified.3. Specifications are subject to change without notice. Internal Circuit Diagram : www.DataSheet4U.com

Features

: 0.28 inch (7.00mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common anode.
Package Dimensions :.
1. 2. 3. 4.
