AS4C128M8D2A - 128M x 8 DDR2

Alliance Semiconductor

📥 Download Datasheet

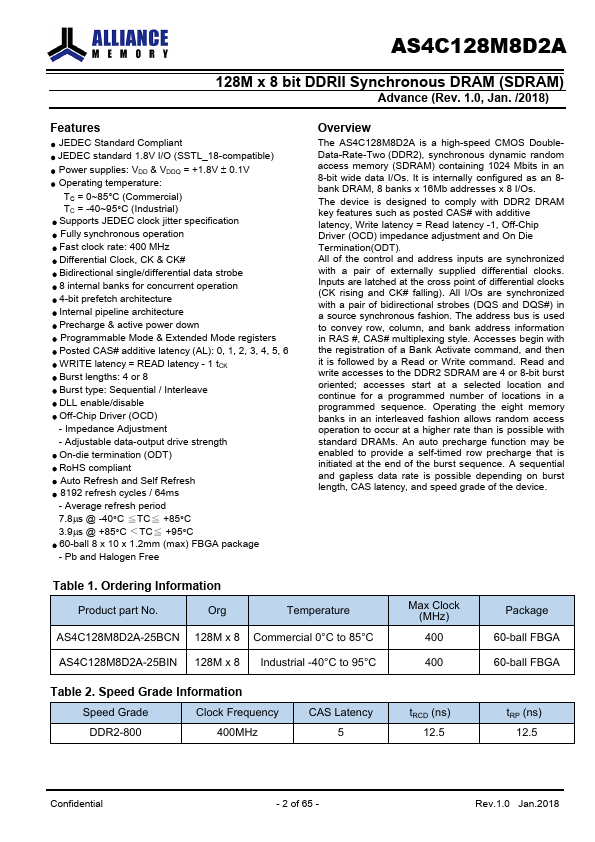

AS4C128M8D2A Datasheet Preview — Preview of AS4C128M8D2A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AS4C128M8D2A
Manufacturer	Alliance Semiconductor
File Size	1.43 MB
Description	128M x 8 DDR2
Datasheet	AS4C128M8D2A-AllianceSemiconductor.pdf

AS4C128M8D2A Product details

Features

JEDEC Standard Compliant.
JEDEC standard 1.8V I/O (SSTL_18-compatible).
Power supplies: VDD & VDDQ = +1.8V  0.1V.
Operating temperature: TC = 0~85°C (Commercial) TC = -40~95°C (Industrial).
Supports JEDEC clock jitter specification.
Fully synchronous operation.
Fast clock rate: 400 MHz.
Differential Clock, CK & CK#.
Bidirectional single/differential data strobe.
8 internal banks for concurrent operation.
4-bit prefetch architecture.
I.
