TPA2644, TPA2641 36V 1.5MHz Low Noise Op Amps

TPA2644 Description

TPA2641/2642/2644 36V, 1.5MHz, Low Noise Op Amps .
The TPA264X series amplifiers are newest high supply voltage amplifiers with 2mV offset, low noise and immunity to high frequency noise from power su.

TPA2644 Features

* Supply Voltage: 3V to 36V
* Offset Voltage: ±2mV Maximum
* Differential Input Voltage Range to Supply Rail, can Work as Comparator
* Bandwidth: 1.5MHz, Slew Rate: 0.5V/μs
* Input Rail to
* VS, No Internal ESD Diode to +VS
* Low 1/f Noise: 50 nV/√Hz at 10Hz
* High

TPA2644 Applications

* Instrumentation
* Sensor Interface
* Motor Control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPA2644, TPA2641. Please refer to the document for exact specifications by model.

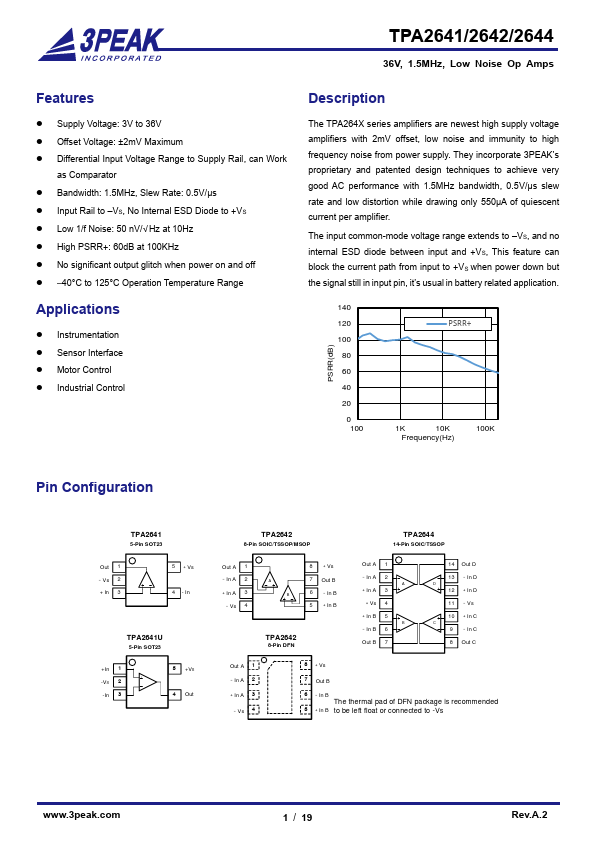

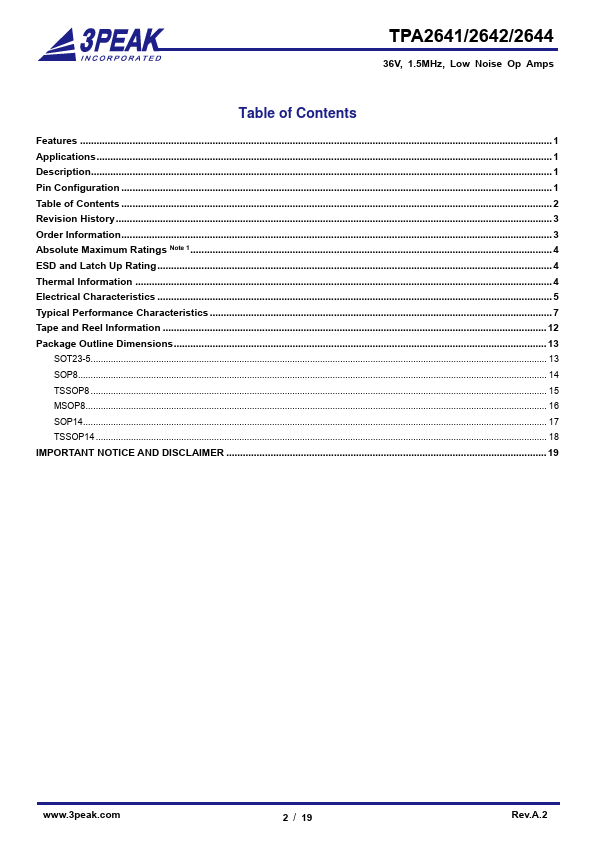

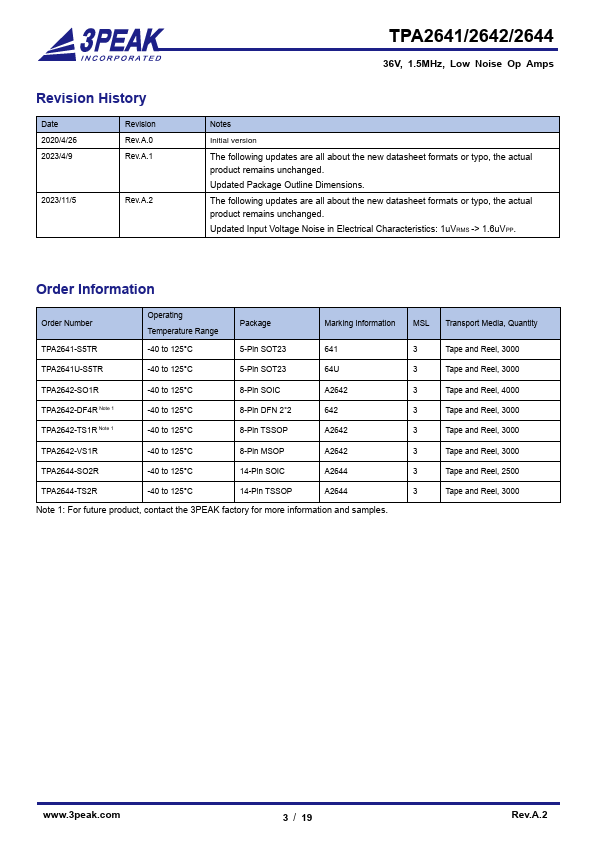

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA2644, TPA2641
Manufacturer
3PEAK
File Size
1.84 MB
Datasheet
TPA2641-3PEAK.pdf
Description
36V 1.5MHz Low Noise Op Amps
Note
This datasheet PDF includes multiple part numbers: TPA2644, TPA2641.
Please refer to the document for exact specifications by model.
