TPA2031Q 55-ns Comparators

TPA2031Q Description

TPA2031Q 5-V, 55-ns Comparators with Push-Pull Output .
Power Supply Voltage: 1. Low Supply Current: 350 μA per channel. Propagation Delay: 55 ns. Offset V.

TPA2031Q Applications

* with AEC-Q100 Reliability Test Applications The TPA2031Q-S5TR-S is the newest comparator with 55ns propagation delay. The device is optimized for single +3-V or +5-V operation. The input common-mode range extends 100 mV beyond the rail, and the outputs is pushpull and can sink or source 1 mA to wit

📥 Download Datasheet

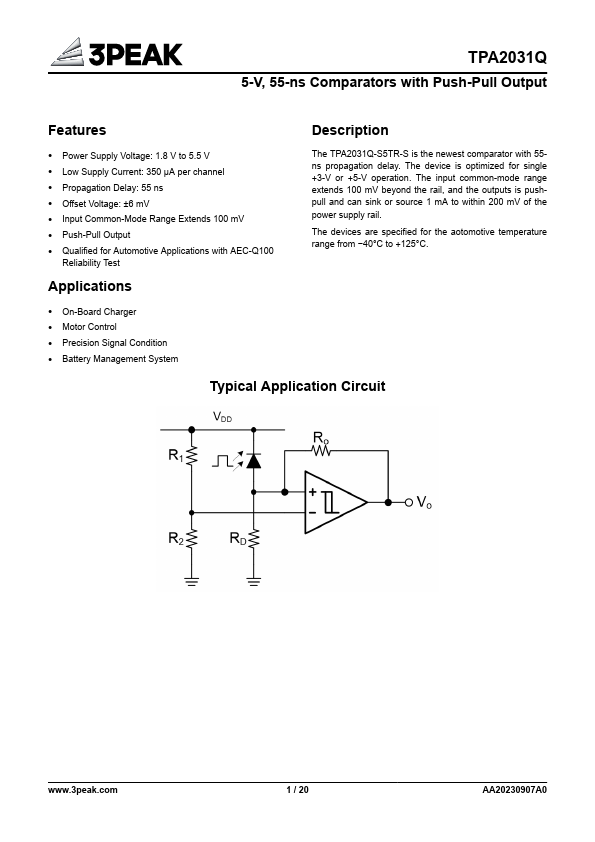

Preview of TPA2031Q PDF

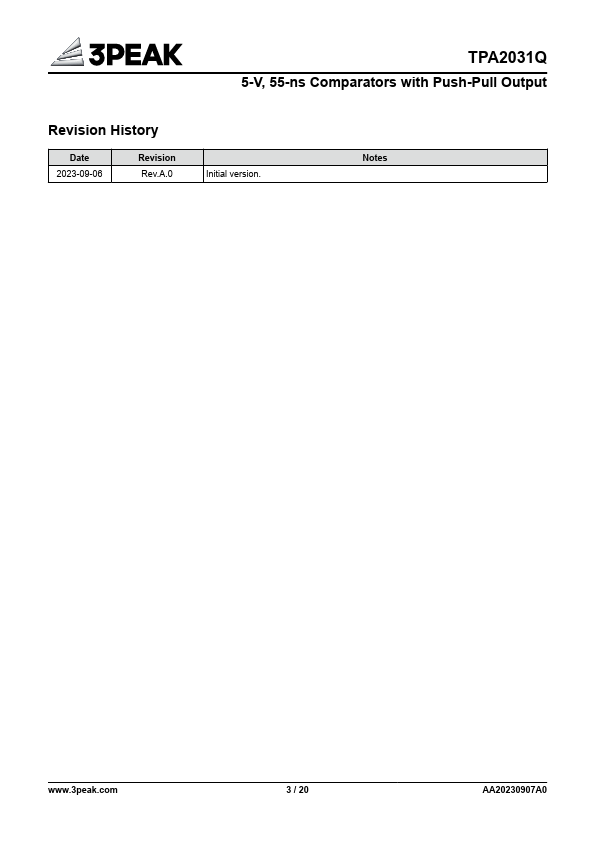

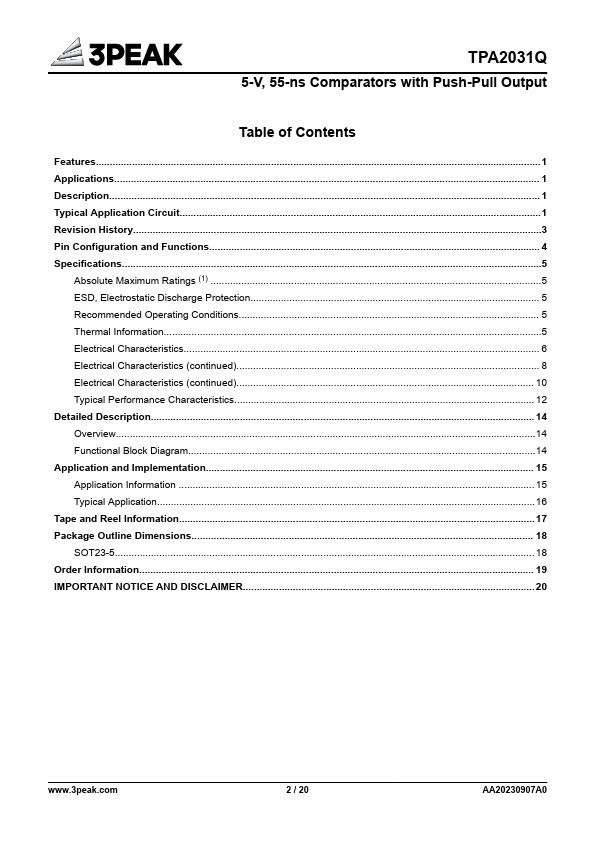

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA2031Q
Manufacturer
3PEAK
File Size
1.20 MB
Datasheet
TPA2031Q-3PEAK.pdf
Description
55-ns Comparators
