TPA2295C High side Current Sense Amplifier

TPA2295C Description

TPA2295C HV, High side Current Sense Amplifier with Internal Comparator .
SMALL VOLTAGE OFFSET:. TPA2295C: ±0. WIDE COMMON MODE VOLTAGE: -0. WIDE CMRR THROUGH COMMON VOLTAGE: 130dB.

TPA2295C Applications

* The TPA2295C family is of high voltage, high side current sense amplifier with voltage output, internal comparator, and voltage reference. The TPA2295C can sense drops across shunts at common-mode voltages from
* 0.1V to 70 V. The TPA2295C are available with five output voltage scales: 20V/V

📥 Download Datasheet

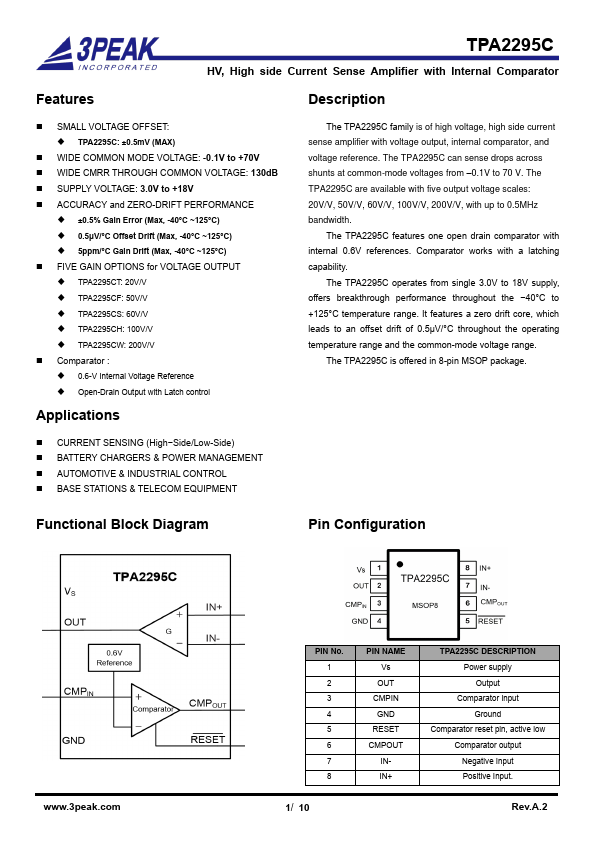

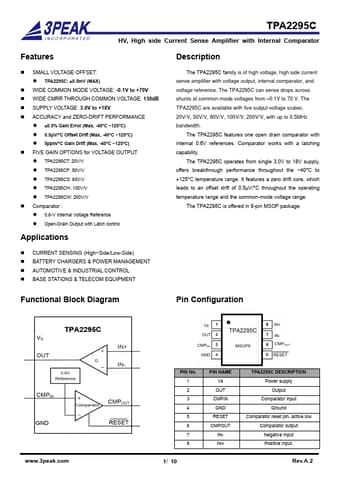

Preview of TPA2295C PDF

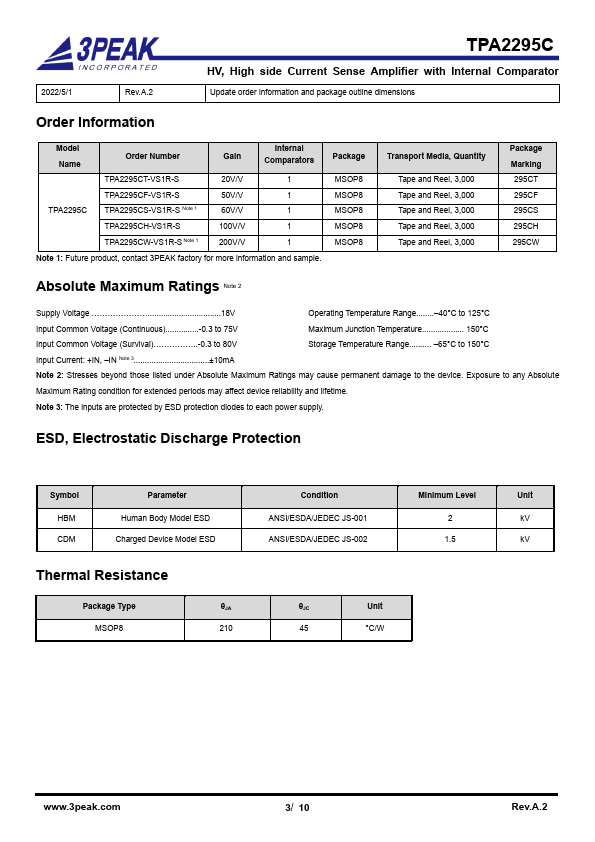

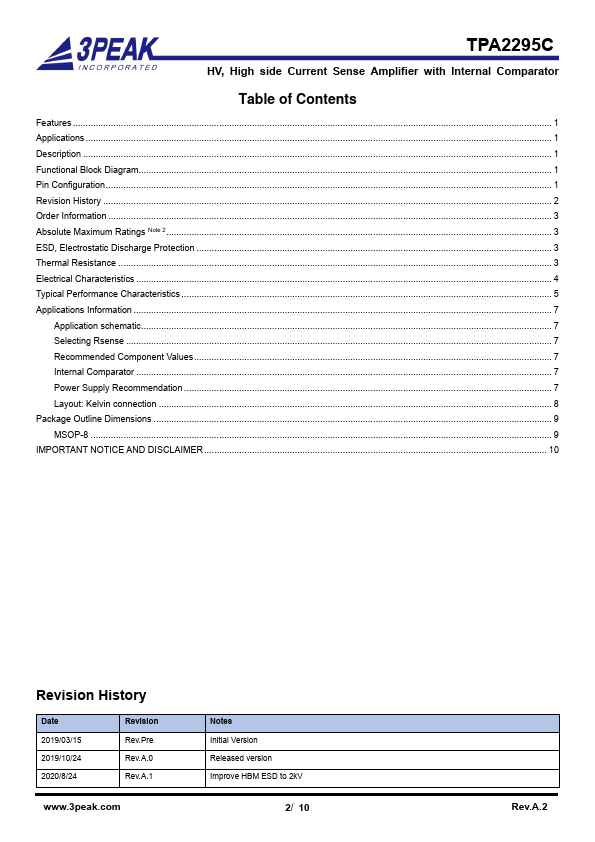

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA2295C
Manufacturer
3PEAK
File Size
666.10 KB
Datasheet
TPA2295C-3PEAK.pdf
Description
High side Current Sense Amplifier
