TPA2682, TPA2681 36V Low Noise Op Amps

TPA2682 Description

.
The TPA268X series amplifiers are the newest highsupply voltage amplifiers with low noise and highfrequency response.

TPA2682 Features

* Supply Voltage: 8 V to 36 V
* Offset Voltage: ±3 mV
* Differential Input Voltage Range to Supply Rail, can Work as Comparator
* Bandwidth: 20 MHz, Slew Rate: 10 V/μs
* Low Noise:
* Voltage Noise Density: 10 nV/√Hz at 100 Hz
* 0.1 to 10 Hz Voltage Noise: 0.8 μVPP

TPA2682 Applications

* Instrumentation
* Active Filters, ASIC Input or Output Amplifier
* Sensor Interface
* Industrial Control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPA2682, TPA2681. Please refer to the document for exact specifications by model.

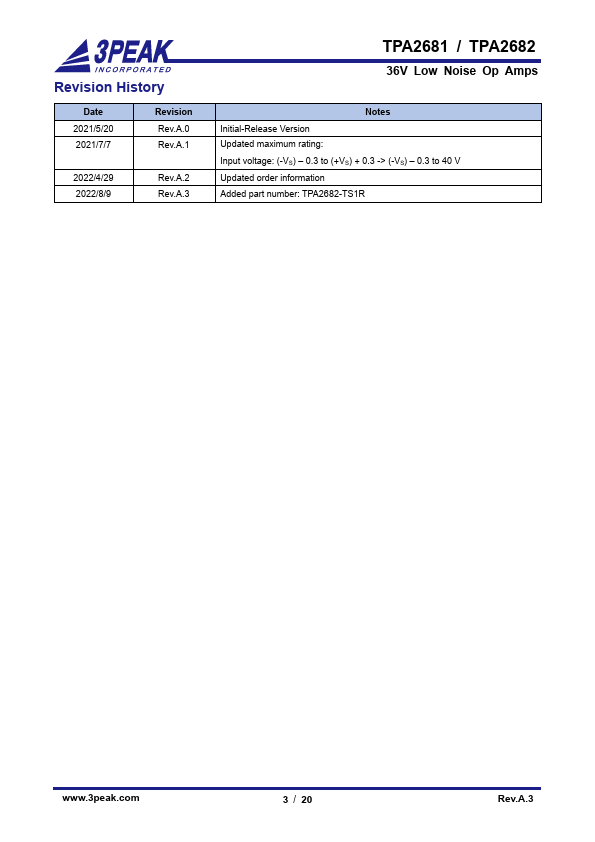

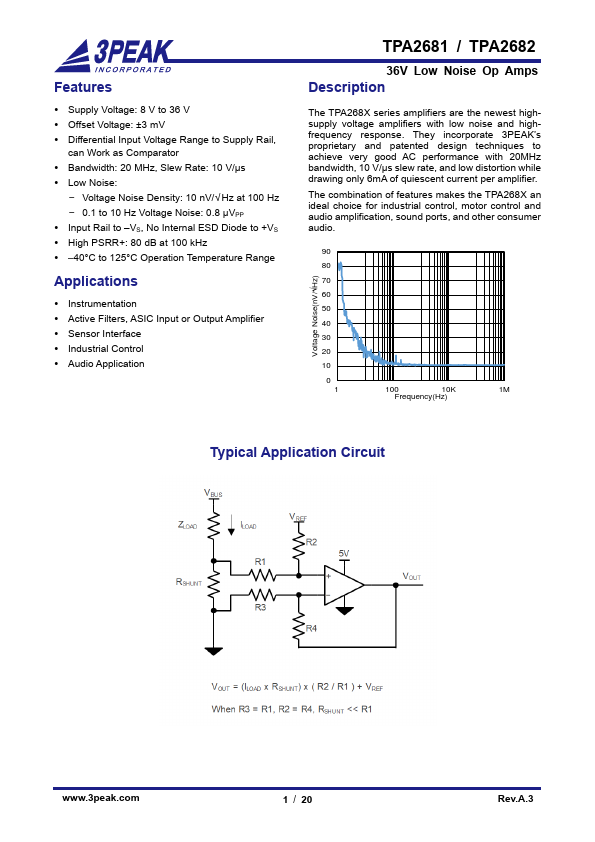

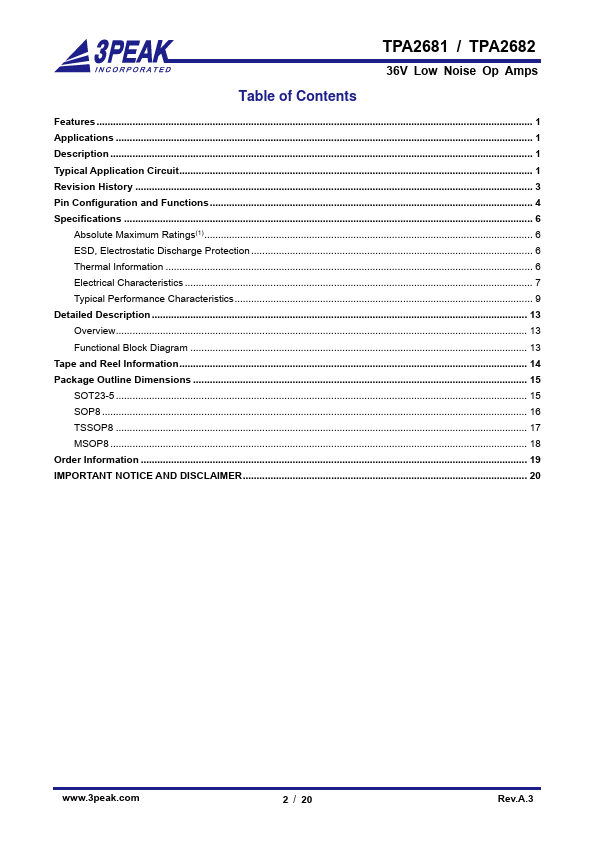

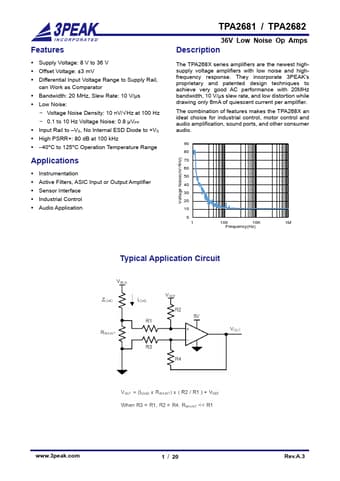

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA2682, TPA2681
Manufacturer
3PEAK
File Size
1.26 MB
Datasheet
TPA2681-3PEAK.pdf
Description
36V Low Noise Op Amps
Note
This datasheet PDF includes multiple part numbers: TPA2682, TPA2681.
Please refer to the document for exact specifications by model.
