AO4832 - 30V Dual N-Channel MOSFET

General Description

The AO4832 uses advanced trench technology to provide excellent RDS(ON) with low gate charge.This device is suitable for high side switch in SMPS and g eneral purpose applications.

2.

Key Features

  • VDS (V)=30V ID=10A(VGS=10V) RDS(ON).

📥 Download Datasheet

Datasheet Details

Part number AO4832
Manufacturer UMW
File Size 396.63 KB
Description 30V Dual N-Channel MOSFET
Datasheet download datasheet AO4832 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4832 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4832 Dual N-Channel MOSFET Kexin
AO4832 30V Dual N-Channel MOSFET VBsemi
AO4832 30V Dual N-Channel MOSFET EVVOSEMI
AO4830 Dual N-Channel MOSFET Kexin

Other Datasheets by UMW

Part Number Description
AO4803A -30V Dual P-Channel MOSFET
AO4807 -30V P-ChanneI MOSFET
AO4828 60V Dual N-ChanneI MOSFET
AO4840 Dual 40V N-ChanneI MOSFET
AO4884 40V Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

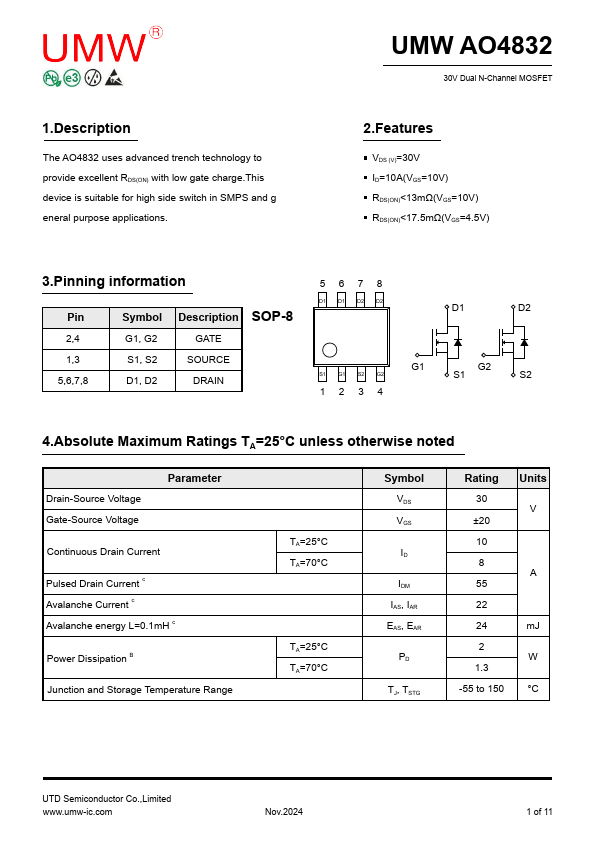

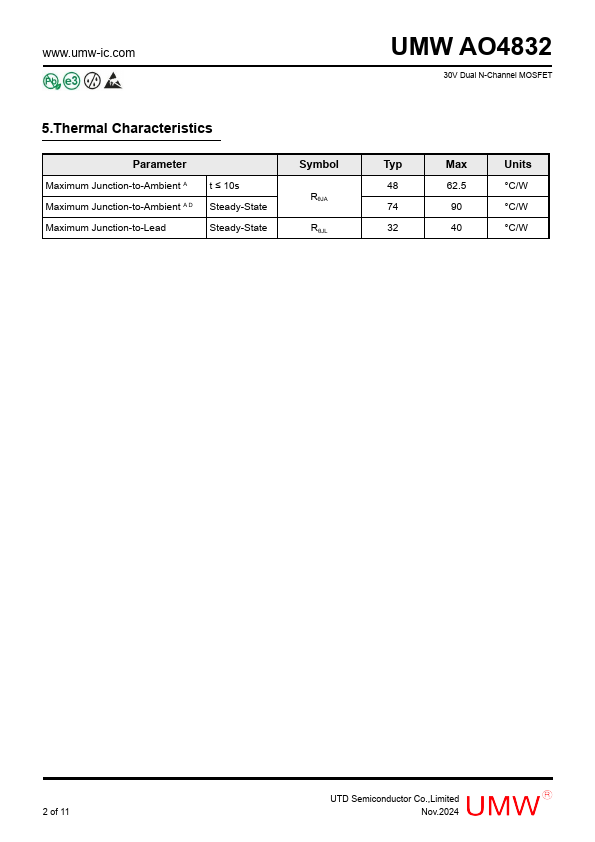

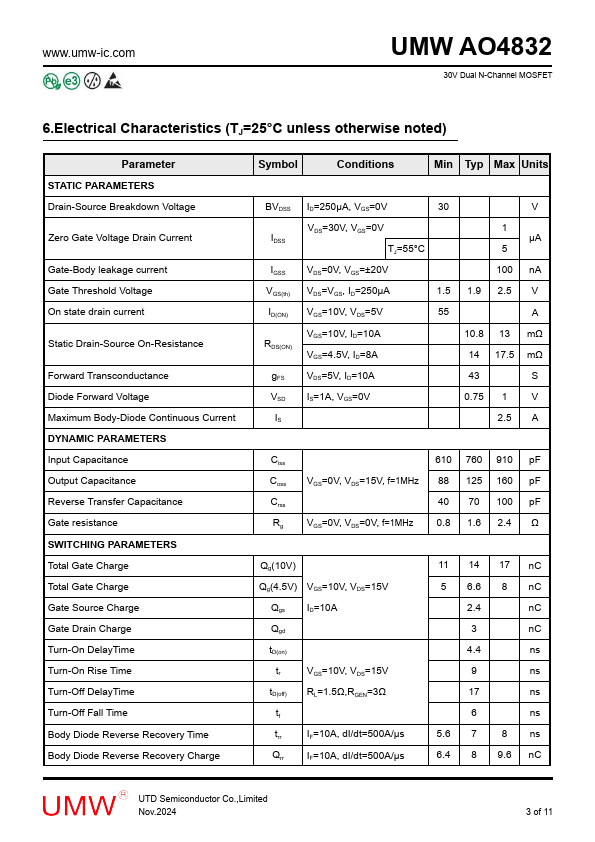

1.Description The AO4832 uses advanced trench technology to provide excellent RDS(ON) with low gate charge.This device is suitable for high side switch in SMPS and g eneral purpose applications. UMW AO4832 30V Dual N-Channel MOSFET 2.Features VDS (V)=30V ID=10A(VGS=10V) RDS(ON)<13mΩ(VGS=10V) RDS(ON)<17.5mΩ(VGS=4.5V) 3.Pinning information Pin Symbol Description SOP-8 5678 D1 D1 D2 D2 D1 D2 2,4 G1, G2 GATE 1,3 5,6,7,8 S1, S2 D1, D2 SOURCE DRAIN G1 G2 S1 G1 S2 G2 S1 S2 1234 4.Absolute Maximum Ratings TA=25°C unless otherwise noted Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current c Avalanche Current c Avalanche energy L=0.
