AO4832 - 30V Dual N-Channel MOSFET

VBsemi

Key Features

Halogen-free.
Trench Power MOSFET.
Optimized for High-Side Synchronous Rectifier Operation.
100 % Rg Tested.
100 % UIS Tested S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2.

AO4832 30v dual n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	AO4832
Manufacturer	VBsemi
File Size	193.74 KB
Description	30V Dual N-Channel MOSFET
Datasheet	AO4832 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4832	30V Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4832	Dual N-Channel MOSFET	Kexin
AO4832	30V Dual N-Channel MOSFET	EVVOSEMI
AO4832	30V Dual N-Channel MOSFET	UMW
AO4830	Dual N-Channel MOSFET	Kexin

Other Datasheets by VBsemi

Part Number	Description
AO4838	30V Dual N-Channel MOSFET
AO4800	Dual N-Channel 30V MOSFET
AO4801	Dual P-Channel 30V MOSFET
AO4805	Dual P-Channel MOSFET
AO4812	Dual N-Channel 30V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

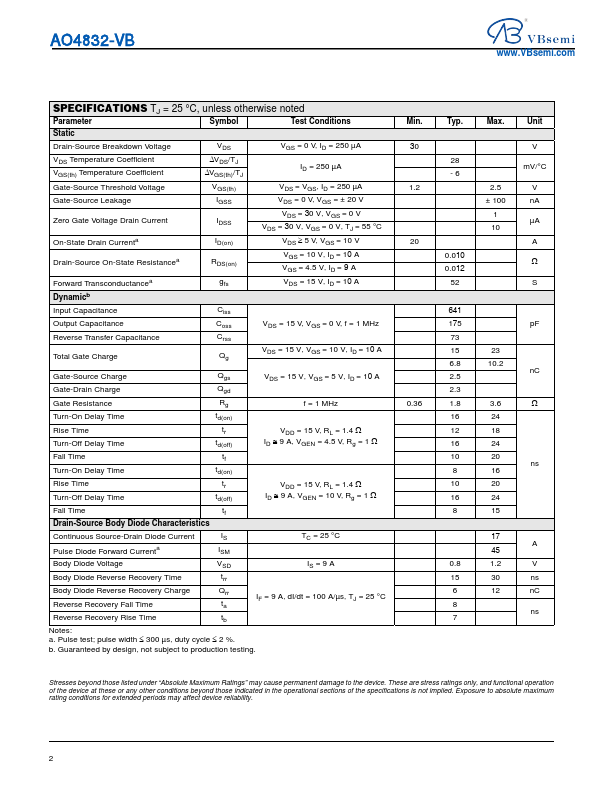

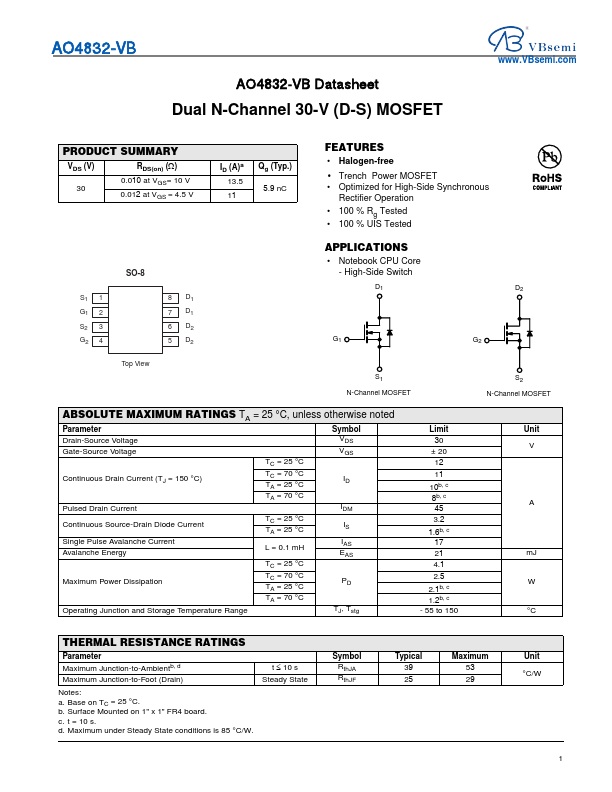

AO4832-VB AO4832-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.010 at VGS= 10 V 0.012 at VGS = 4.5 V ID (A)a 13.5 11 Qg (Typ.) 5.
