2SD602A Datasheet NPN Transistor

Manufacturer: MLSM

📥 Download Datasheet

Datasheet Details

Part number 2SD602A
Manufacturer MLSM
File Size 560.05 KB
Description NPN Transistor
Download 2SD602A Download (PDF)

Key Features

  • Low Collector to Emitter Saturation Voltage.

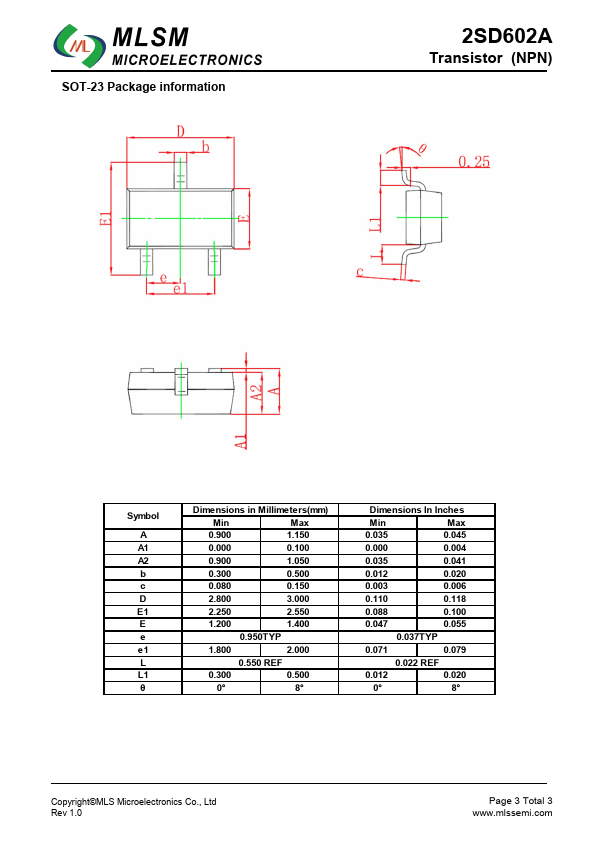

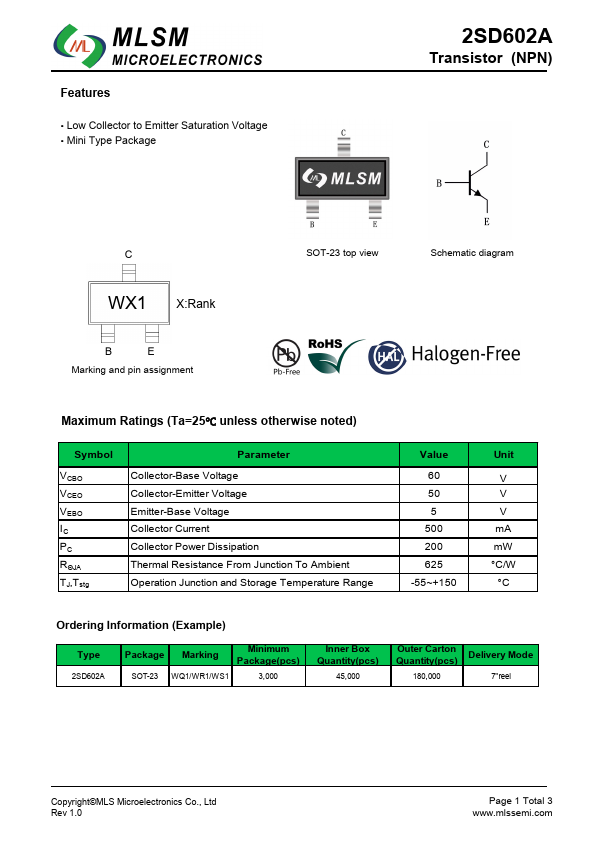

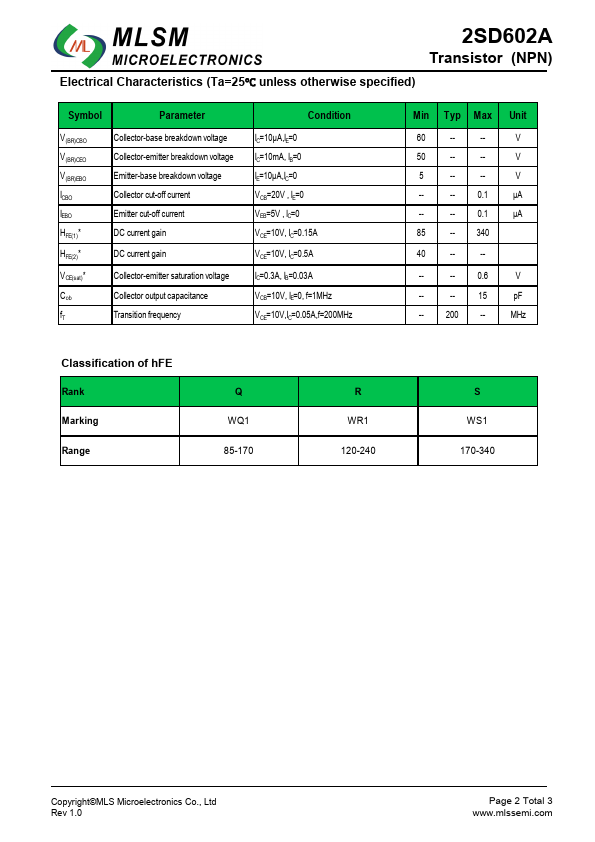

  • Mini Type Package 2SD602A Transistor (NPN) C WX1 X:Rank B E Marking and pin assignment SOT-23 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Ra.
