2SD602A - Silicon NPN Transistor

Galaxy Microelectronics

Key Features

z Complementary to 2SB710A PNP Transistor z Low collector to emitter saturation voltage VCE(sat) Pb Lead-free Production specification 2SD602A.

2SD602A silicon npn transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SD602A
Manufacturer	Galaxy Microelectronics
File Size	167.14 KB
Description	Silicon NPN Transistor
Datasheet	2SD602A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SD602A	Silicon NPN Transistor	Panasonic Semiconductor
2SD602A	Silicon NPN transistor	BLUE ROCKET ELECTRONICS
2SD602A	NPN Transistor	SeCoS
2SD602A	NPN Transistor	JinYu
2SD602A-HF	NPN Transistors	Kexin

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SD601A	Silicon NPN Transistor
2SD1005	NPN SILICON EPITAXIAL TRANSISTOR
2SD1088	High Voltage Darlington Power Transistors
2SD1119	Silicon NPN Transistor
2SD1757	Silicon Epitaxial Planar Transistor

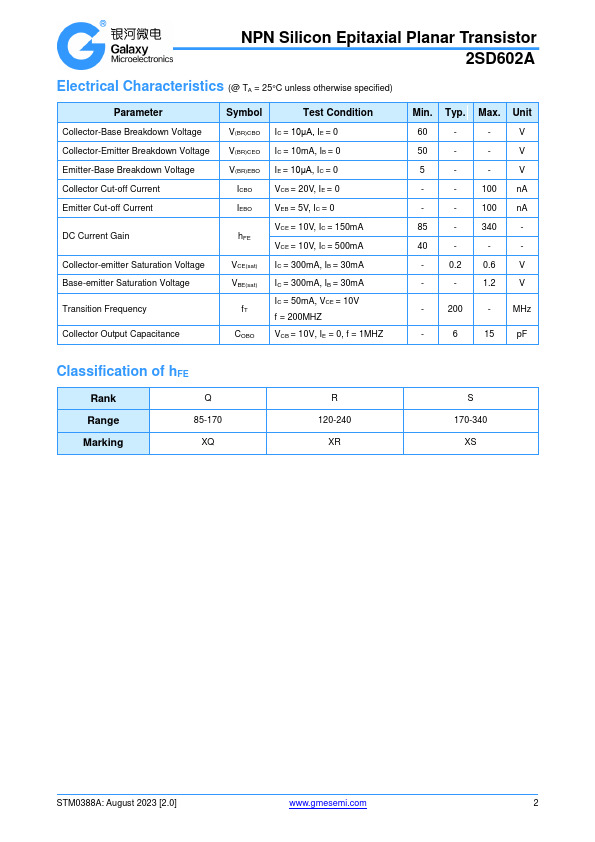

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Silicon Epitaxial Planar Transistor FEATURES z Complementary to 2SB710A PNP Transistor z Low collector to emitter saturation voltage VCE(sat) Pb Lead-free Production specification 2SD602A APPLICATIONS z General purpose amplifier applications SOT-23 ORDERING INFORMATION Type No. Marking 2SD602A XQ/XR/XS Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 5 IC Collector Current 500 ICP Peak collector current 1 PC Collector power Dissipation 200 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA A mW ℃ C181 Rev.A www.gmicroelec.
