2SD1757K Datasheet NPN Transistor

Manufacturer: MLSM

📥 Download Datasheet

Datasheet Details

Part number 2SD1757K
Manufacturer MLSM
File Size 549.19 KB
Description NPN Transistor
Datasheet download datasheet 2SD1757K Datasheet

Key Features

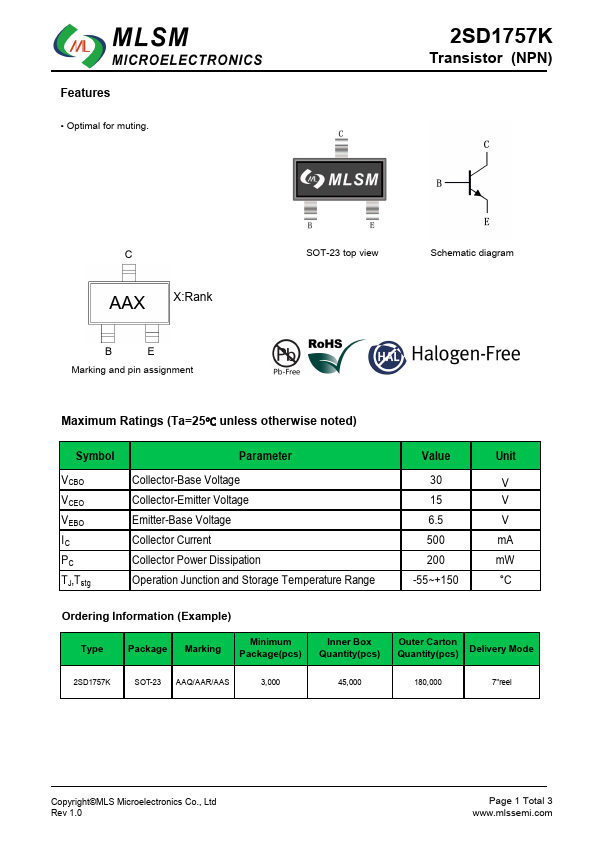

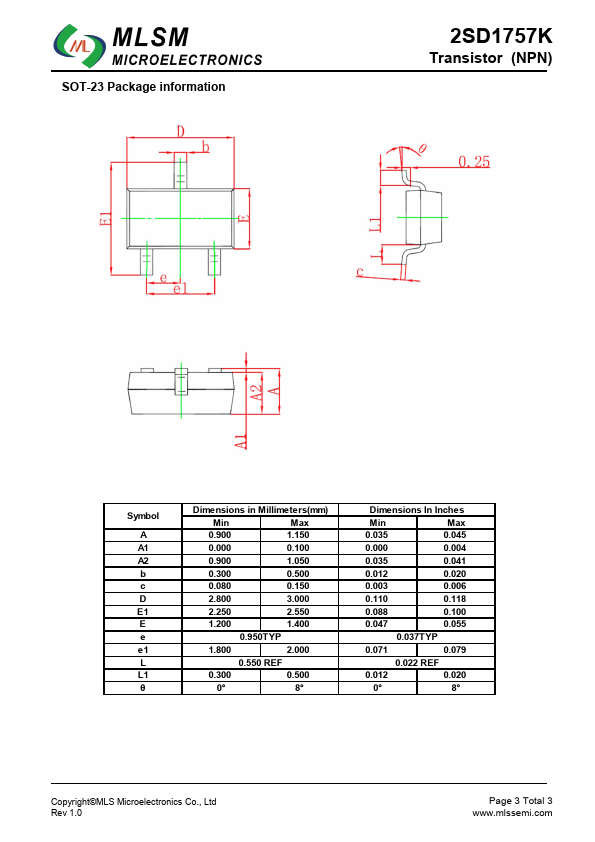

  • Optimal for muting. 2SD1757K Transistor (NPN) C AAX X:Rank B E Marking and pin assignment SOT-23 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO VCEO VEBO IC PC TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage 30 V 15 V Emitter-Base Voltage 6.5 V Collector Current 500 mA Collector Power Dissipation 200 mW Operation Junction and Storage Temperature Range -55~+150 °C Ordering Information (E.
